Canon TS-E 24mm f/3.5L II Tilt-Shift


Category: Canon, Lenses, SLR

Vendor: Canon


Pin It

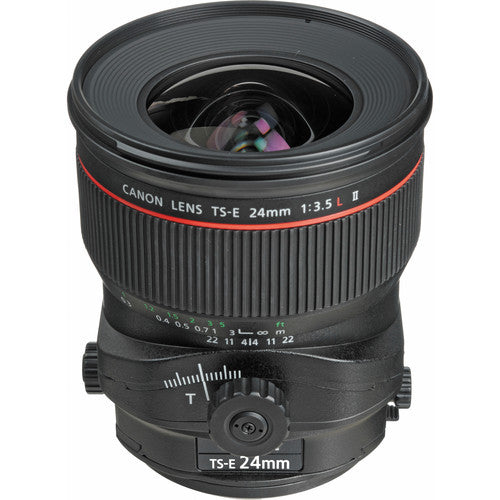

Canon TS-E 24mm f/3.5L II Tilt-Shift

A superb refinement to a true Canon classic, the new TS-E 24mm f/3.5L II offers enhanced functionality and image quality in its most popular tilt-shift focal length. Designed with UD glass to minimize and compensate for chromatic aberrations and a specially coated aspherical element for the highest possible glare-free image quality, this tilt-shift lens features an angle of view of 84° on a full-frame camera.

New TS rotation lets users freely combine tilting and shifting within the range of +/- 90° in the direction of movement. The Tilt function has an enhanced range of movement of up to +/- 8.5°, a revolving construction for both portrait and landscape shooting modes, locking, ergonomically-designed and easily operated tilt and shift knobs, uses a circular aperture for beautiful out-of-focus areas, and is constructed using only lead-free glass and has an SWC lens coating that controls ghosting and flare to a far greater degree than earlier coating technologies.

Specifications

Focal Length & Maximum Aperture

24mm 1:3.5

Minimum Aperture

f/22

Lens Construction

16 elements in 11 groups

Diagonal Angle of View

84° (without tilt or shift)

Image circle diameter

67.2mm

Focus Adjustment

Manual focus, rear focusing system (no floating system)

Closest Focusing Distance

0.69 ft./0.21m (maximum close-up magnification: 0.34x)

Aperture Control

EMD with 8 blade iris diaphragm, circular aperture

Filter Size

82mm

Max. Diameter x Length, Weight

3.5 x 4.2 in./88.5 x 106.9mm, 27.5 oz./780g

Lens Cap, Lens Hood and Pouch

Provided
† Prices and specifications subject to change without notice.
