Fujinon XF 2.0X TC WR Teleconverter


Category: Fuji, Lenses, Mirrorless

Vendor: Fujifilm


Pin It

Fujinon XF 2.0X TC WR Teleconverter - FJ16516271

Product Overview

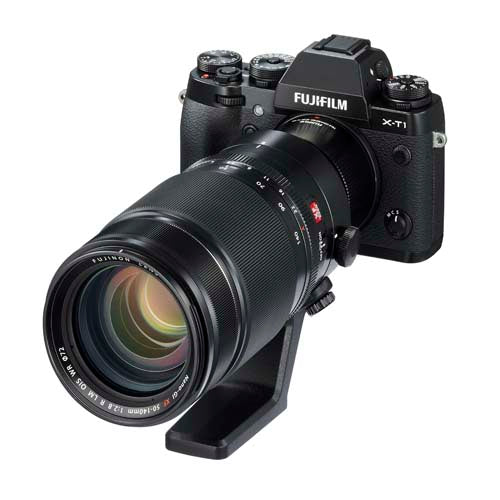

The "FUJINON TELECONVERTER XF2X TC WR" is a high-performance teleconverter capable of multiplying the focal length of mounted lenses* by two. It features excellent optical design with a construction of 9 elements in 5 groups to maintain the optical performance of the original lens. Also, thanks to the unified design when mounted to a compatible lens, the teleconverter is weather and dust-resistant and operates at temperatures as low as -10°C. This makes it possible to be used with confidence outdoors when used with the weather and dust-resistant X-T1 and X-Pro2 camera bodies, and the XF50-140mmF2.8 R LM OIS WR and XF100-400mmF4.5-5.6 R LM OIS WR lenses.

Lens Configuration

FUJINON TELECONVERTER XF2X TC WR

Compatibility Chart

Lens Focal length with teleconverter mounted Max. aperture with teleconverter mounted
XF50-140mmF2.8 R LM OIS WR 100mm-280mm
(152mm-427mm in 35mm format equivalent)
F5.6
XF100-400mmF4.5-5.6 R LM OIS WR 200mm-800mm
(305mm-1,219mm in 35mm format equivalent)
F9-11

Vertical axis : Contrast   S : Sagittal   M : Meridional

Wide(50mm)

Spatial frequency 15 lines/mm

Distance from the center of the image
XF50-140mmF2.8 R LM OIS WR

Spatial frequency 45 lines/mm

Distance from the center of the image
XF50-140mmF2.8 R LM OIS WR



Telephoto(140mm)

Spatial frequency 15 lines/mm

Distance from the center of the image
XF50-140mmF2.8 R LM OIS WR

Spatial frequency 45 lines/mm

Distance from the center of the image
XF50-140mmF2.8 R LM OIS WR



Vertical axis : Contrast   S : Sagittal   M : Meridional

Wide(100mm)

Spatial frequency 15 lines/mm

Distance from the center of the image
XF100-400mmF4.5-5.6 R LM OIS WR

Spatial frequency 45 lines/mm

Distance from the center of the image
XF100-400mmF4.5-5.6 R LM OIS WR



Telephoto(400mm)

Spatial frequency 15 lines/mm

Distance from the center of the image
XF100-400mmF4.5-5.6 R LM OIS WR

Spatial frequency 45 lines/mm

Distance from the center of the image
XF100-400mmF4.5-5.6 R LM OIS WR



Type FUJINON TELECONVERTER XF2X TC WR
Lens configuration 9 elements 5 groups
Focal length 2x that of original lens
Max. aperture 2 additional stop
Min. aperture 2 additional stop
Focus range Approx. same as that of original lens
Max. magnification 2x that of original lens
External dimensions: Diameter x Length
(distance from camera lens mount flange)
Approx. Φ58mm x 30.2mm
Weight
(excluding lens caps )
Approx.170g
