Plustek MobileOffice D430 28PPM duplex small foot print document scanner (PLS-783064605533)

Category: Scanners

Vendor: Plustek

Pin It

Plustek MobileOffice D430 28PPM duplex small foot print document scanner (PLS-783064605533)

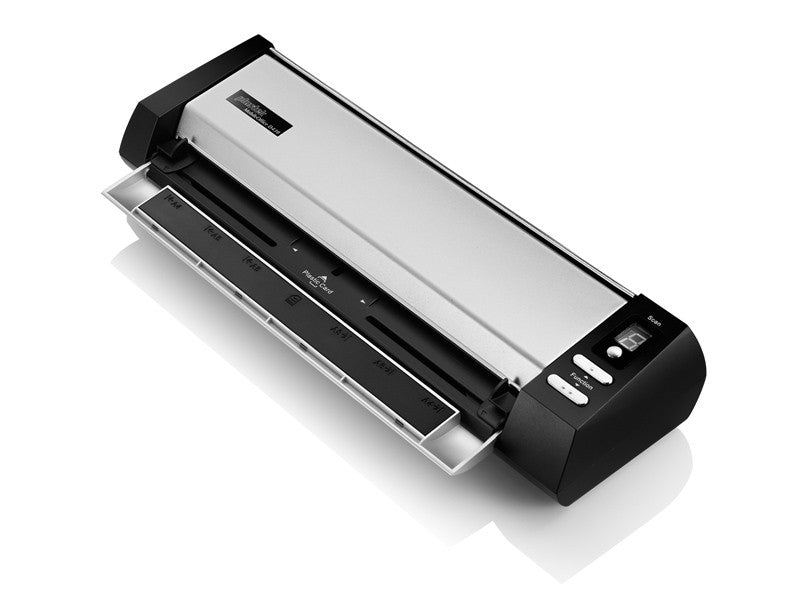

 Plustek MobileOffice D430 is an easy to use, high speed scanner with a compact design that is ideal for ISVs and Systems Integrators with vertical market applications that require ID, embossed card, and mixed sized document scanning up to 8.5x50”.

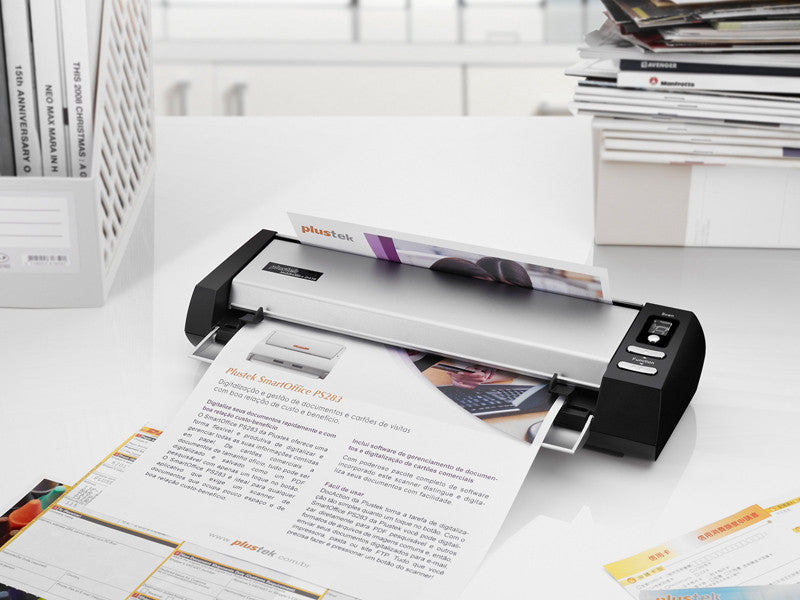

Small footprint, high speed

The small footprint and 33 ppm scanning speed makes this scanner ideal for front desk applications: pharmacy, patient registration, bank teller.

Single touch button design

Nine customizable single touch settings enable you to automate frequent scanning jobs and tasks.

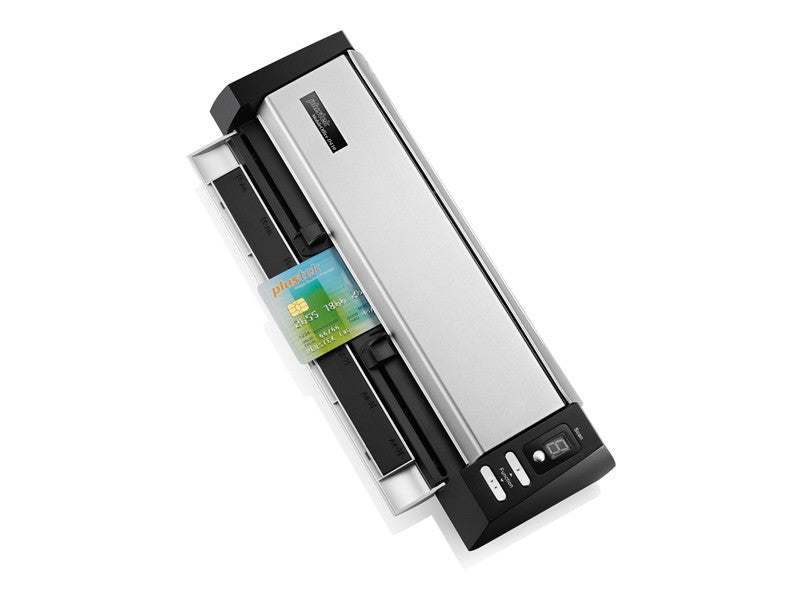

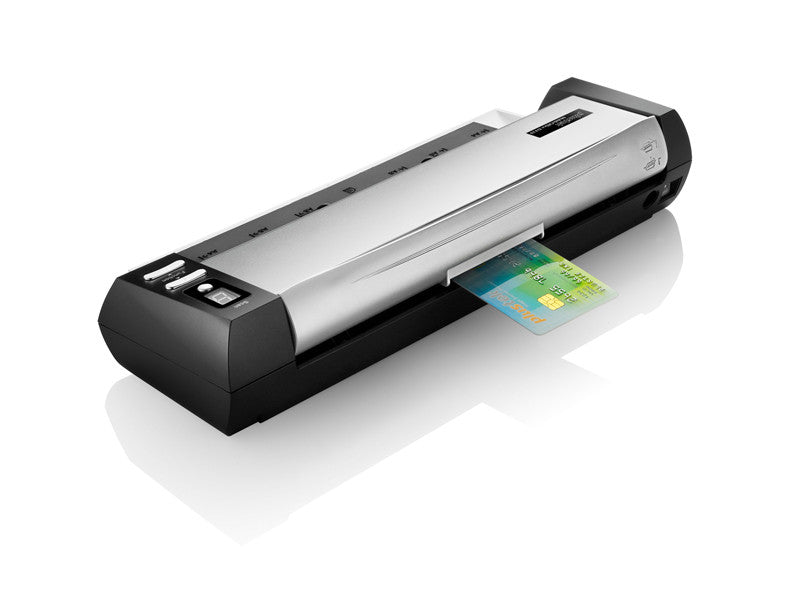

Plastic/Embossed Card Scanning

Scans embossed plastic cards up to 1.2mm thick including, credit cards, driver license cards, ID cards, medical cards or membership cards.

Self-maintenance design

Simply lift the upper part of the scanner for cleaning. Simple maintenance improves image quality and paper feeding.

Paper output options

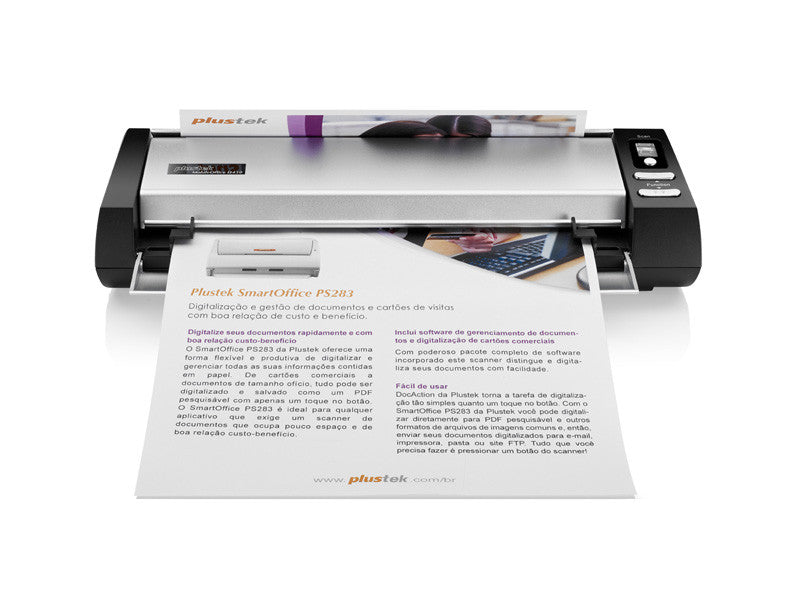

Paper can be ejected to the rear of the scanner or out the top. It allows the scanner to be placed right up against a wall in space constrained environments.




Image Sensor CIS x 2
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
Scan Modes Color: 48-bit Input; 24-bit Output
Grayscale: 16-bit Input; 8-bit Output
B/W: 1-bit
Scanning Speed Simplex: 1.8 sec (Grayscale Mode, 200 dpi, A4)
Duplex: 2.4 sec (Grayscale Mode, 200 dpi, A4)
Scanning Area (W x L) Max.: 216 x 1270 mm (8.5" x 50")
Min.: 12.7 x 12.7 mm (0.5" x 0.5")
Acceptable Paper Sizes (W x L) Max.: 240 x 1270 mm (9.45" x 50")
Min.: 30 x 35 mm (1.18" x 1.38")
Acceptable Paper Weight (Thickness) Paper: 50 g/㎡ to 125 g/㎡
Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810)
Daily Duty Scan ( Sheets ) 1000
Action Button Scan, Function x 2 (Up & Down)
Power Supply AC Adapter: 24 Vdc/ 0.75 A
Interface USB 2.0
Net Weight 0.96 Kgs (2.13 Lbs)
Dimensions (W x D x H) 303 x 94 x 60 mm (11.93" x 3.7" x 2.36")
Protocol TWAIN compliant
OS Windows XP / Vista / 7 / 8 / 10
Hardware Requirements Pentium® IV 2GHz processor or higher
One available USB 2.0 port
512 MB RAM (512 MB or higher recommended)
800 MB Free HDD space (1 GB or larger recommended)
