Plustek OpticFilm 120 35mm Negatives/Slides & 120 Film scanner (PLS-783064365642)


Category: Scanners

Vendor: Plustek


Pin It

Plustek OpticFilm 120 35mm Negatives/Slides & 120 Film scanner (PLS-783064365642)

The OpticFilm 120 delivers the professional image quality results from 35mm film strips, slides, and 120/220mm film from 6x4.5cm up to 6x12cm in sizes. It is designed for professional photographers, advanced amateur photographers, film photo enthusiasts, photography schools and clubs. The OpticFilm 120 satisfies the film scanning requirements of advanced amateurs or professionals that require the ultimate in image quality and an ICC profiled scanning system. During the OpticFilm 120 development phase, LaserSoft Imaging with its more than 25 years of experience in digital imaging has significantly contributed to achieve the OpticFilm's superior quality.







 Features:

Extraordinary image quality

The outstanding image quality is assured by state of the art optical and electronic systems including an 8-element glass lens with 5,300 dpi measured resolution, high-sensitive color CCD with 10,600 dpi resolution, and stable light sources. Delivering an effective usable Dynamic Range of 4,01 (with SilverFast Multi-Exposure®/ according to ISO 21550:2004) and a theoretically maximum density of 4.8, providing accurate color and all highlight and shadow details.

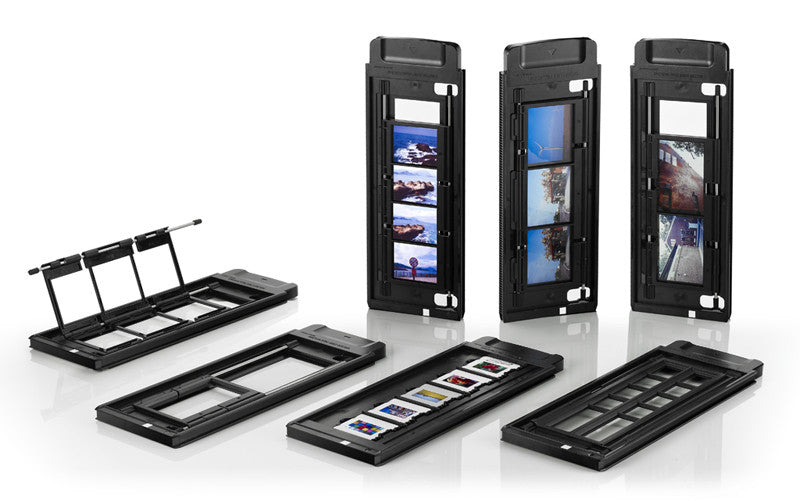

Newly designed film carriers ensure accurate imaging and efficient workflow

The OpticFilm 120 includes patent-pending, adjustable pitch 120 film holders that ensures flat film for in-focus scans. Users do not need to cut 3-frame 6x7 120 film strips. The Opticfilm 120 also uses an automatic motorized film transport system that speeds the scanning workflow.

Elegant and Compact design

The OpticFilm 120’s metal case provides isolation and stability for the lens, CCD and automatic transport assemblies. The OpticFilm 120 is one of the most compact 120 film scanners on the market. The rear cover design reduces the scanners overall dimensions and prevents dust from entering the scanner.

Powered By LaserSoft Imaging SilverFast®

Software plays an important role as hardware to deliver a brilliant image. The OpticFilm 120 comes with the world recognized professional film scanning software,SilverFast Ai Studio 8, and it is full functionality. For example, SilverFast iSRD® helps dust and scratch removal and optimizes images. SilverFast Multi-Exposure®increases the dynamic range and reduces noises. Auto IT8 Calibration® helps color calibrating in 2 minutes and ensures correct colors. All in all, SilverFast Ai Studio 8 meets the highest standards, and these SilverFast software features are well-combined and perfectly-integrated with the OpticFilm 120.

Upgrade to SilverFast Archive Suite 8 today and receive a 50% discount off the normal SilverFast Archive Suite upgrade price.



  • Scans 35mm film and 120/220 film. Supports 6x4.5, 6x6, 6x7, 6x9 and 6x12 frame sizes.
  • Up to 10,600 dpi input and 5,300 dpi measured output resolution for film and slides provides extraordinary images.
  • Motorized film transport for automatic batch scanning.
  • Built-in infrared channel for dust and scratch detection.
  • Efficient power saving design.

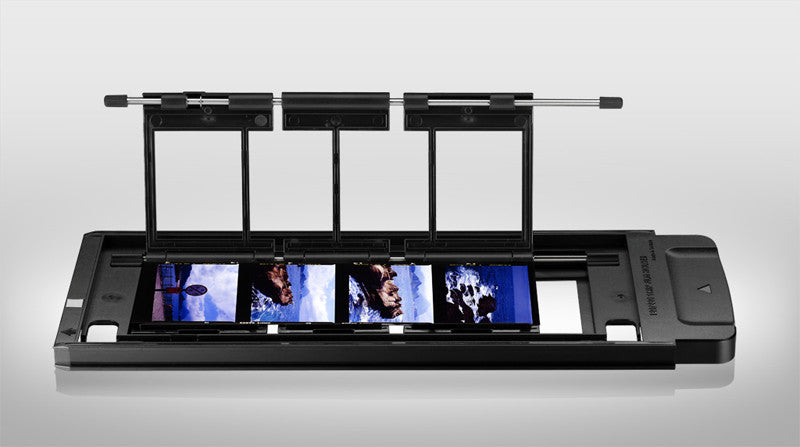

  • The patent-pending adjustable pitch 120/220 film holder is easy to load and holds 120/220 film strips flat.

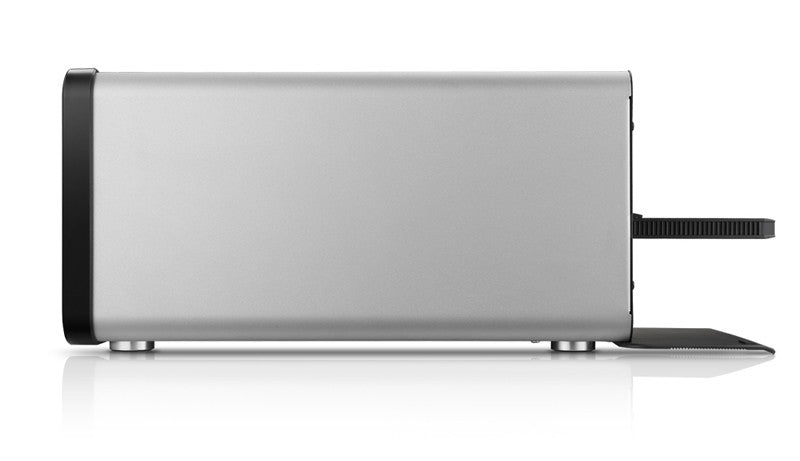

  • Innovative folding rear cover reduces the size of the scanner to save desktop space and prevent dust from entering the scanner.
  • Powered by LaserSoft Imaging SilverFast®



Specifications:

Image Sensor CCD
Light Source LED
Hardware Resolution Maximum Input:10600 dpi
Maximum Output:5300 dpi
Scan Modes Color: 48-bit input, 24/48-bit output
Grayscale: 16-bit input, 8/16-bit output
Dynamic Range 4.01
(with SilverFast Multi-Exposure®/ according to ISO 21550:2004)
Infrared Built-in
Scanning Area (W x L) 60 mm x 120 mm
IT8 Target Included for color accuracy
Power Supply 24 Vdc / 0.75 A
Interface USB 2.0
Net Weight Approx. 5.7 Kgs
Dimensions (W x D x H) 210 x 374 x 189 mm
OS Windows XP/ Vista/ 7/ 8/ 10
Mac OS X 10.5.x/ 10.6.x/ 10.7.x/ 10.8.x/ 10.9.x/ 10.10.x/ 10.11.x
Hardware Requirements Windows PC
2 GHz Processor or faster
2 GB RAM main memory (4 GB RAM recommended)
10 GB free space on hard disk drive
DVD drive or internet connection

Mac
2 GHz Processor or faster (INTEL based processor, NO PowerPC )
2 GB RAM main memory (4 GB RAM recommended)
10 GB free space on hard disk drive
DVD drive or internet connection
