RODE Broadcaster Condenser Microphone


Vendor: RØDE


Pin It

Precision 1" broadcast cardioid end-address condenser microphone. Features unique 'on air' indicator.

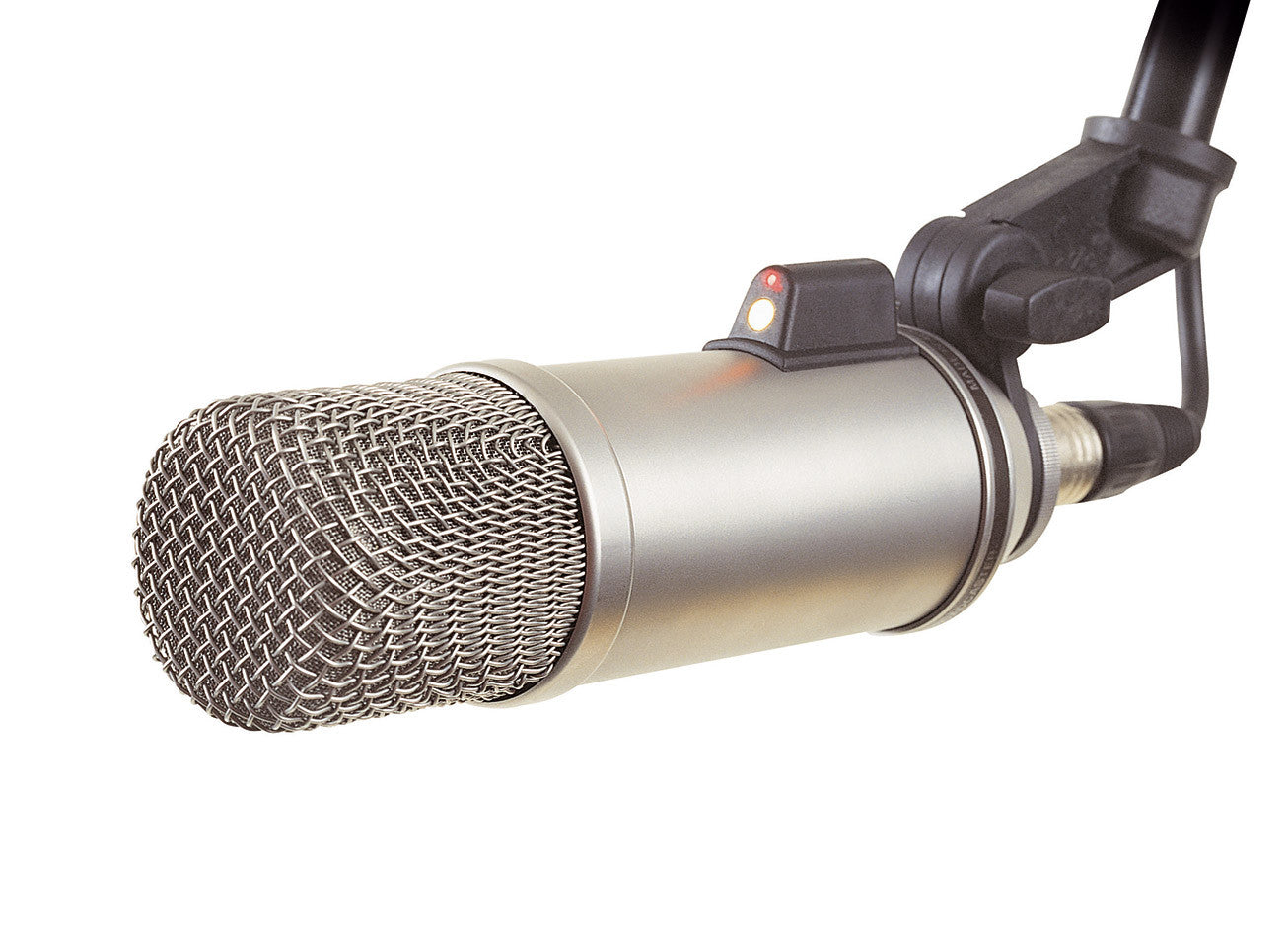

The RØDE Broadcaster is a large diaphragm, end-address condenser microphone designed to provide the ultimate performance for broadcast vocal applications.

Its rich, full quality tailored response has an emphasised proximity effect that has made it a standard in radio stations the world over. It is equally suitable as a voice-over microphone for film and television

The Broadcaster features an internal pop filter, designed to minimise plosives sounds that can overload the microphone capsule and distort the audio output. In addition to the Broadcaster's native 20Hz-20kHz response, a selectable high-pass filter at 75Hz is available which will prevent low-end noise such as air conditioners and traffic from being recorded.

The Broadcaster features an innovative 'On-Air' indicator on the body that can be wired for external activation by the 'Channel On/Mute' function on many consoles. If not connected to a console or switch, the indicator will remain lit whenever the microphone has power.

The RØDE Broadcaster microphone is designed and made in Australia, and covered by RØDE Microphones' industry leading 10 year warranty.



Broadcaster Specifications
Acoustic Principle Pressure Gradient
Active Electronics JFET impedance converter with bipolar output buffer
Capsule 1.00"
Polar Pattern Cardioid
Address Type End
Frequency Range 20Hz - 20kHz
Output Impedance 40Ω
Maximum SPL 128dB SPL (@ 1kHz, 1% THD into 1KΩ load)
Maximum Output Level 2.0mV
Sensitivity -34.0dB re 1 Volt/Pascal (20.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted) 14dB-A
Power Options +24V phantom power +48V phantom power
Weight 577.00gm
Dimensions 167.00mmH x 50.00mmW x 65.00mmD
Output XLR Output
Warranty 1 year with free extension to 10 years following registration here
