RODE NT5 Cardioid Studio Condenser Microphones (Single Microphone)


Category: Microphones

Vendor: Rode


Pin It

Compact 1/2" cardioid condenser microphone.

  • Externally biased condenser
  • Gold sputtered 1/2” capsule
  • Heavy-duty satin-nickel plated body
  • Dual power operation
  • Surface mount circuitry
  • Low noise
  • Full frequency response
  • Available as Certified Match Pair
  • 10 year extended warranty when you register your microphone

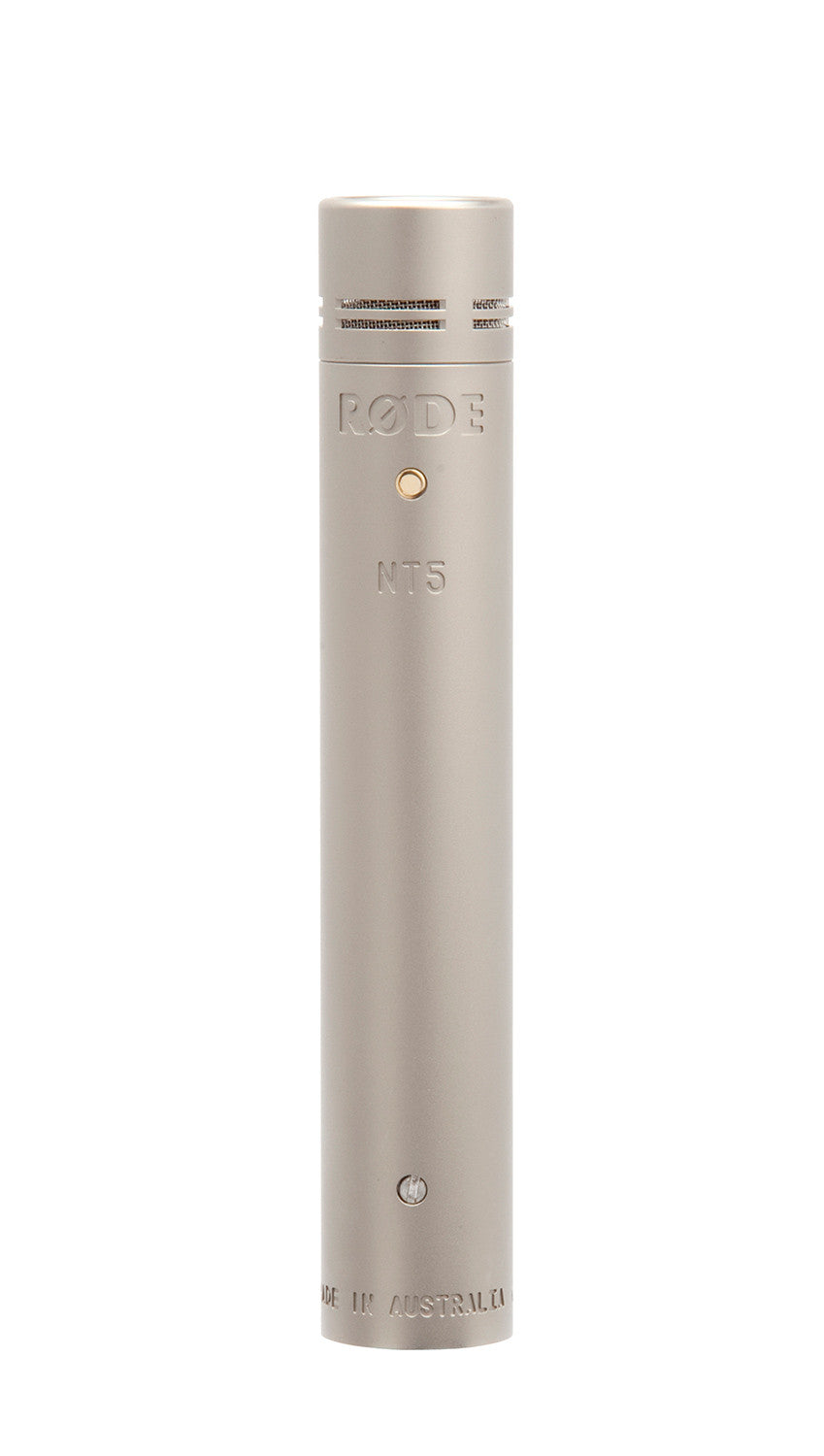

The NT5 is RØDE's premier small-diaphragm cardioid condenser microphone, sometimes referred to as a 'pencil mic'.

Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2" capsule, an active J-FET impedance converter with bipolar output buffer.

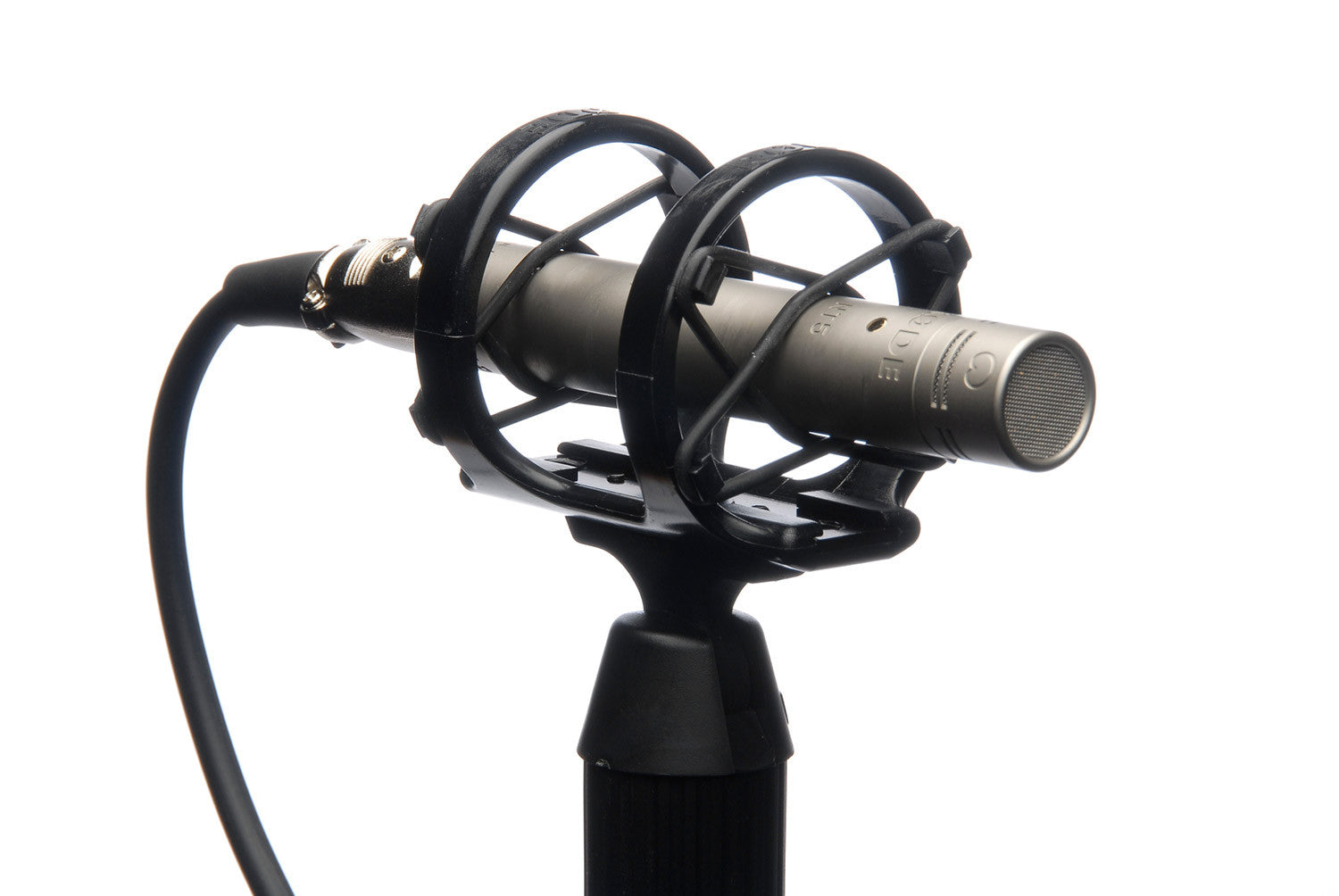

Its tight cardioid pickup pattern also makes it ideal for use as an indoor dialogue microphone for filmmaking on a mic stand or boom.

Expanding the NT5's versatility, an interchangeable omnidirectional capsule (NT45-O) is available.

Finished in durable satin nickel, the NT5 available as a single microphone or as an acoustically matched pair.

The NT5 is designed and made in Australia, and covered by RØDE's industry leading 10 year warranty.



NT5 Specifications
Acoustic Principle Pressure Gradient
Active Electronics JFET impedance converter with bipolar output buffer
Capsule 0.50"
Polar Pattern Cardioid
Address Type End
Frequency Range 20Hz - 20kHz
Output Impedance 100Ω
Maximum SPL 143dB SPL (@ 1kHz, 1% THD into 1KΩ load)
Maximum Output Level 13.9mV
Sensitivity -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted) 16dB-A
Power Options +24V phantom power +48V phantom power
Weight 101.00gm
Dimensions 118.00mmH x 20.00mmW x 20.00mmD
Output XLR Output
Warranty

1 year with free extension to 10 years following registration
