The EOS R5 builds off of the powerful legacy of Canon’s full frame cameras offering next generation refinements in image quality, performance and reliability. It’s an ideal choice for a large range of photographic and cinematographic environments from weddings, portraits, sports, journalism, landscape, cinematography and more.
Canon’s all-new 45 Megapixel full-frame sensor is at the heart of the EOS R5’s superb image quality, which also leads the way for impressive 8K DCI cinematic movie capture with theability to extract 35.4 Megapixel still images. Focus and speed are paramount in the EOS R5, providing impressive continuous capture at speeds of up to 20 frames-per-second and with Dual Pixel CMOS AF II capability, to track split second movements of eventhe most elusive of subjects. With 1,053 Automatic AF zones, it is easier than ever to photograph people with the use of Eye, Face and Head Detection AF, or intuitively track the whole body, face or eye of cats, dogs, or birds with Animal Detection*2AF. The 5-axis in-body image stabilization can effectively compensate for camera shake with approximately 8 stops of stabilization*with use of certain non-stabilized, and optically image stabilized lenses. Connectivity like 5GHz and 2.4GHz Wi-Fi®and Bluetooth®, is also included.
8K RAW, 4K up to 120fps, 10-bit 4:2:2 with Canon Log or HDR PQ, Internal Recording in all Formats, with Auto Focus.
With the high-speed processing capability of the DIGIC Ximage processor, the EOS R5 is ableto record 8K movies (uncropped, atup to 29.97 fps) – a first for Canon full-frame mirrorless cameras. 4K video shooting is also possible at up to 119.9fps, in 4:2:2 10-bit (H.265) Canon Log, and Dual Pixel CMOS AF is available in all 8K and 4K modes. Image-makers worldwide will be able to tell their stories in larger-than-life resolutions. Additional new features include: Internally recorded and uncropped 8K RAW Recording up to 29.97 fps with Dual Pixel CMOS AF, and HDR-PQ Recording (H.265) capability.
In-body Image Stabilizer can provide up to 8 stops of Shake Correction*.
The EOS R5 is Canon’s first camera to incorporate 5-axis IBIS (In-Body Image Stabilization). This camera will not only enhance the ability to shoot still images at slower shutter speeds but it will also help reduce camera shake when shooting movies. Additionally, the EOS R5’s IBIS will work in combination with Optical Image Stabilization found in many Canon RF and EF lenses. *When combined with certain IS lenses such as the RF24-105mm F4 IS L USM, or when used with certain non-IS lenses as well.

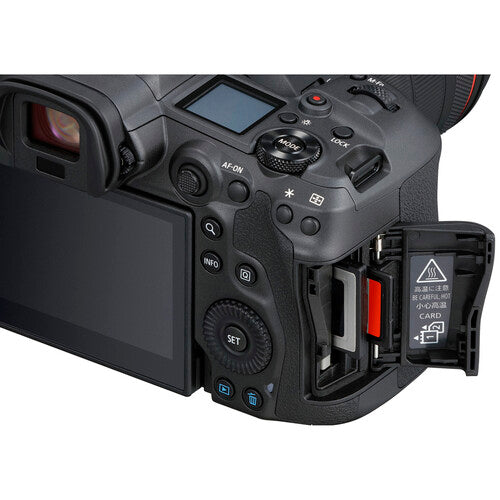

Dual Card Slots for CF express**and UHS-II SD Memory Cards***
Whether you are shooting photos every day, or are recording 8K videos, the EOS R5 camera can capture an incredible amount of images through its super high-speed CF express dual card slots. Plus a UHS-II SD***card slot is also provided at your disposal. **Type B compatible. ***Some types of data cannot be saved on the SD memory card.
0.5-type OLED EVF with Approx. 5.76 Million Dots
The EOS R5 camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 5.76 million dots and a 23mm eyepoint. Displaying a bright image and extensive shooting information that rotates with the camera. The EOS R5’s EVF supports a 120 fps refresh rate^1and has been created to provide a bright, sharp and colorful 100% view of the subject at hand, displaying a crisp and vivid image with minimal aberration or distortion. ^1Display may be grainier.

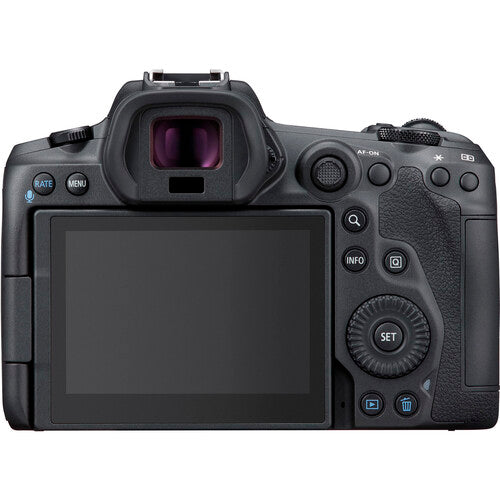

Vari-angle Touchscreen LCD
The EOS R5 camera features a 3.15-inch, 2.1 Megapixel Clear View LCD II Vari-angle Touchscreen LCD. Its extensive flexibility makes it easy to compose and shoot from virtually any angle, making selfies simple and enablingthe LCD to fold away when not in use. The brightness of the EVF and the LCD monitor can even be adjusted individually. Touch screen features include settings, review and even AF point selection.

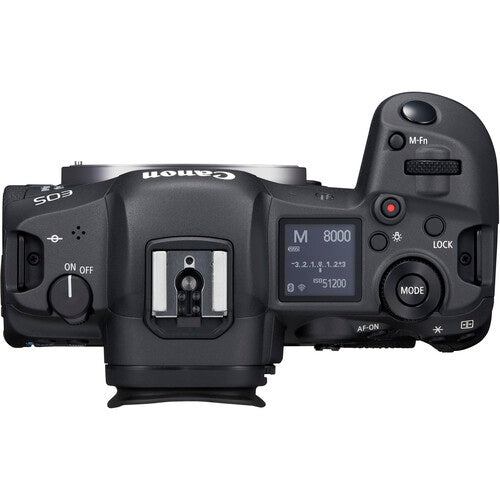

Dot-matrix LCD Panel
An LCD panel on the top of the camera features a dot-matrix display that shows information on the camera’s status, recording mode and more. It gives real-time setting information both when the camera is in use or on standby, and can be inverted from black to white to suit viewing preferences or the ambient light source.
In addition to the traditional 2.4 GHz Wi-Fi®^, the EOS R5 camera now supports 5 GHz Wi-Fi®^communication – a first for EOS mirrorless cameras. Users can easily perform high-speed FTP data transfer between the camera and using the free Canon Camera Connect app. Simply connect to the Camera Connect app where you can browse, or download images to your smart device, then share and upload from the device directly to various social media sites and web services. For professional photographers using the EOS R5 camera, the built-in Wi-Fi®is the ideal feature that is needed for quick wireless connectivity. ^ Compatible with iOS®versions 9.3/10.3/11.2-11.4/12.4/13.2, Android™ smartphone andtablet versions 5.0/5.1/6.0/7.0/7.1/8.0/8.1/9.0/10. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
Bluetooth®^^connectivity offers continuous connection, and allows the EOS R5 camera to automatically connect to a smart device that is paired with the Canon Camera Connect app. This allows a number of functions from easy image transfer to remote shooting, to adding GPS*3information to your photos and videos and more. ^^Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS®devices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen. or later) equipped with Bluetooth®version 4.1 or later and the Camera Connect App Ver. 2.5.10. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met. *3In certain countries and regions, the use of GPS may be restricted. Therefore, be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.
image.canon is a cloud service designed to ease your imaging workflow, whether you are a professional, enthusiast, or casual user. Connecting the EOS R5 camera to the image.canon service will allow photographers to seamlessly upload all images and movies in their original format and quality, and access them from the dedicated app or through a web browser – and automatically forward them to a computer, mobile device, and third party services.
Designed to allow users to operate customizable camera functions while looking through the optical viewfinder, the EOS R5 camera features a multi-controller button located on the back of the camera that makes it easy for the user to locate and control.
Main Dial and Quick Main Dials1 & 2
With its compact body size, the EOS R5 camera features a three dial User Interface in the main dial, quick control dial 1 and quick control dial 2 which provide direct control over the traditional exposure controls such as Shutter Speed, Aperture, and ISO –and are fully customizable to the user’s preference.
Wireless File Transmitter R10-A
The optional Wireless File Transmitter WFT-R10A, which also serves as a vertical battery grip, provides both a fast through put for image uploading and several features that make dynamic wireless photography simple and fast. It has 5 GHz 802.11ac support for high-speed image transfer, a user interface that enables speedy set-up and configuration of wireless networks and even compatible smartphone connection. The Wireless File Transmitter WFT-R10A makes it simple to use a compatible smartphone as a remote control for still and video capture even from a far distance. It can even transfer recorded images back for viewing on the device's screen.
The EOS R5 camera’s optional Battery Grip BG-R10 holds 2 Battery Packs LP-E6NH, while enabling virtually seamless vertical and horizontal operation and additional functions with all buttons similarly configured in a comfortable and dedicated grip. The Battery Grip BG-R10 also has a useful battery charging function (with optional USB power delivery adapter attached) that’s particularly helpful for power-hungry operations like video recording or shooting over an extended period of time.
High-Capacity Battery PackLP-E6NH
For increased power and the convenience of compatibility among multiple cameras, the EOS R5 camera uses Battery Packs LP-E6NH, the same batteries used on the EOS R camera and others. Especially helpful for photographers with multiple EOS cameras, the Battery Pack LP-E6NHis a robust,long-lasting battery that helps deliver power, shot after shot.
Comfortable and solid in the hand, the EOS R5 camera features a rigid yet lightweight magnesium alloy chassis that enhances body durability while shielding the camera from electromagnetic radiation and heat. It also has a tempered front panel for internal rigidity.
The EOS R5 camera has a durability rated at approx. 500,000 cycles and full-frame focal-plane shutter that offers approx. 12 shots/sec.
Dust-& Water-resistant Sealing
The EOS R5 camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas like the buttons, terminal covers, the battery compartment and the card slot cover. Precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body. Combined with an RF lens, or any other weather-sealed EF/EF-S lens, the EOS R5 camera proves to be a reliable partner in virtually any climate.
Digital single-lens non-reflex AF/AE camera
Type B: Card slot
SD card speed class-compatible
Compatible with UHS-II
Eye-Fi cards and Multimedia cards (MMC) are not supported.
Canon RF lens group (excluding EF, EF-S and EF-M lenses) When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
No. of remaining shots for focus bracketing, multiple exposures, or interval timer
Movie recording time available
Image Stabilizer (IS mode)
Quick Control button
White balance/White balance correction
Auto Lighting Optimizer
Still photo cropping / Aspect ratio
AF point (1-point AF)
Flash ready / FE lock / High-speed sync
Touch shutter / Create folder
Shutter speed / Multi-function lock warning
Wi-Fi® signal strength
Highlight tone priority
Exposure level indicator
Dual Pixel CMOS AF
AF Working Range
EV -6 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at 73°F/23°C, ISO 100, One-Shot AF) * Except RF lenses with a Defocus Smoothing (DS) coating.
Expand AF Area (Above, below, left and right/Around)
Large Zone AF (Vertical/Horizontal)
Real-time metering with image sensor (384 [24x16 zone metering])
Evaluative metering (AF point-linked)
Partial metering (approx. 6.1% of the area at the center of the screen)
Spot metering (approx. 3.1% of the area at the center of the screen)
Center-weighted average metering
EV -3 - 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting)
Exposure Control Modes
Scene Intelligent Auto
Flexible-priority AE (Fv)
Program AE (P)
Shutter-priority AE (Safety shift possible) (Tv)
Aperture-priority AE (Safety shift possible) (Av)
Manual exposure (M)
Custom shooting mode C1, C2, C3
ISO Speed Range
Available ISO speeds; user-set
ISO 100-51200 (1/3- or 1-stop increments)
L: equivalent to ISO 50, H: 102400
For [Highlight tone priority], the minimum ISO speed limit will be ISO 200 to 51200.
Expanded ISO cannot be set for HDR mode or during HDR PQ shooting.
User-defined ISO range - still photo shooting
ISO Speed Range
L (50)–51200 (in 1-stop increments)
ISO 100–H (102400) (in 1-stop increments)
* Expanded ISO speeds are noted as being “equivalent” to these speeds.
User-defined Auto ISO range - still photo shooting
ISO 100–25600 (in 1-stop increments)
ISO 200–51200 (in 1-stop increments)
ISO Auto details in still photo shooting
*1ISO 200 when [Highlight tone priority] is set to [Enable] or [Enhanced]. *2Varies depending on [Maximum] and [Minimum] of [Auto range]. *3If outside the setting range, changed to the value most close to ISO 400. *4ISO 1600 when using a lens that is not compatible with Variable control of maximum ISO Auto limit for E-TTL.
±3 stops in 1/3- or 1/2-stop increments
±3 stops in 1/3- or 1/2-stop increments
Auto AE lock
The metering mode for AE lock after focus can be customized.
User-applied AE lock
In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
Enabled in all metering modes.
Electronically controlled focal-plane shutter
Electronic first curtain or mechanical shutter
*Cannot be used in conjunction with the following functions: flash photography, HDR shooting,multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High]. * A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated. * In electronic shutter shooting under conditions such as flash firing by other cameras or with fluores-cent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.
When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb When [Electronic] is set: 1/8000-0.5 sec.
Soft-touch electromagnetic release
10-sec. delay, 2-sec. delay
Shutter Lag Time
Electronic 1st Curtain
Shutter-release time lag *Measured with shutter button pressed fully from half-pressed position
Approx. 81 ms
Approx. 50 ms
Approx. 50 ms
Ambience priority, standard, flash priority
Compatible E-TTL Speedlites
Canon EX- and EL-series Speedlites
E-TTL II Flash Metering
Evaluative (Face Priority)
Flash Exposure Compensation
±3 stops in 1/3- or 1/2-stop increments
External Flash Settings
The camera can set the following with EX series Speedlites:
