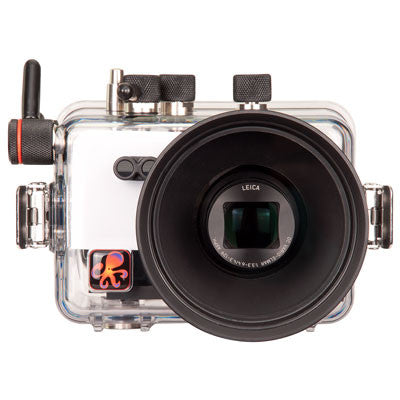

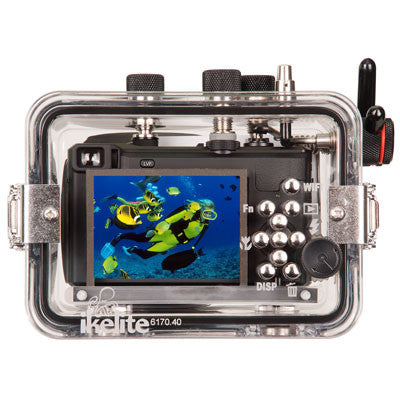

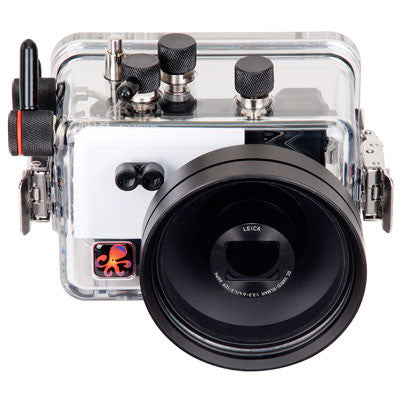

Ikelite Underwater Housing for Panasonic ZS40, TZ60 & TZ61 - 617040

Ikelite Product Number 6170.40

Dive into underwater photography with this compact and simple to use combination!

Construction

There's no greater assurance than being able to see the o-ring seal. Simply close the two double-passivated stainless steel locking lid snaps, and see the o-ring form a solid black, watertight seal. Large, easy-to-reach controls are provided for all camera functions including the rear dial.

Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. We back our products with over 50 years of experience and service within the dive industry.

Flash

An included flash diffuser improves lighting quality when the camera's built-in flash is used. A built-in flash is effective between 1-3 feet (0.3-0.9m) from the subject in clear conditions. For best results a color correcting filter or external lighting is recommended. External lighting is more powerful and can be placed in a position to virtually eliminate the backscatter - or "snow" - from your underwater images.

The optional AF35 strobe triggers and provides automatic TTL exposure by watching the camera's built-in flash, without the need of fiber optic cords or sensors. Alternatively, two ports are provided for the connection of up to two Ikelite-, SEA&SEA-, or Olympus-type fiber optic cords.

Wide Angle, Macro + Filters

The housing port is designed to accept color filter, wide angle, and macro options for 3.9-inch diameter ports. Light is absorbed very quickly as it passes through water. A subject will look darker, less colorful and somewhat grainy when viewed through even a few feet of water. The addition of a compatible wide angle accessory expands the camera's field of view underwater, providing the opportunity to get as close as possible to the subject and reduce the amount of water light passes through. The results speak for themselves - photos with the best color, exposure and clarity possible.

What's Included
  • Housing
  • Port cover
  • Flash diffuser
  • Flash deflector
  • Silicone lubricant 1cc tube
  • 1 year manufacturer warranty
Specifications
  • 200 ft (60m) depth rating
  • Controls for all camera functions except LVF button
  • Near neutral buoyancy in fresh water
  • 12-24 thread tray mounting with 3 in (76mm) spacing
  • Weight 2.7 lb (1.2 kg)
  • Dimensions 6.8 x 4.8 x 6.5 in (173 x 122 x 150 mm)
  • 3.9-inch diameter lens port
Spare Parts
0109 Main o-ring
0132.30 Port o-ring
0200.08 Port cover
9523.10 Tray hardware
0184.2 Silicone lubricant resealable 2cc tube
Documentation
