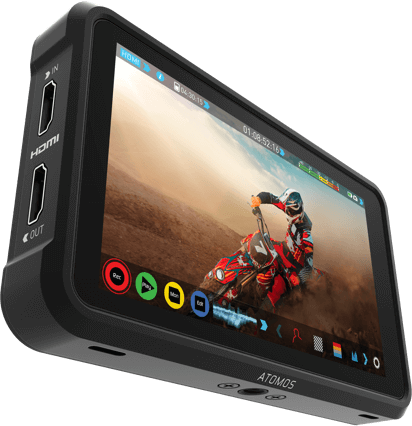

Atomos Ninja V - 5" 4Kp60 Monitor Recorder

Atomos SKU: ATOMNJAV01 | Helix SKU: ATOMNJAV01

Eliminate your camera’s internal compression and time limits – record up to 4Kp60 10-bit HDR video direct from your camera's sensor over HDMI 2.0. Teamed with a 1TB AtomX SSDmini you can now achieve up to 150 minutes of 4K recording on a single drive! And when you’re done, your edit-ready ProRes and DNxHR recordings are stored on affordable SSD drives.

The Ninja V displays 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. See your images clearly in daylight on the near edge-to-edge anti-reflection screen. Ninja V can be calibrated for perfect color accuracy every time, and also enables playout to HDR or SDR TV.

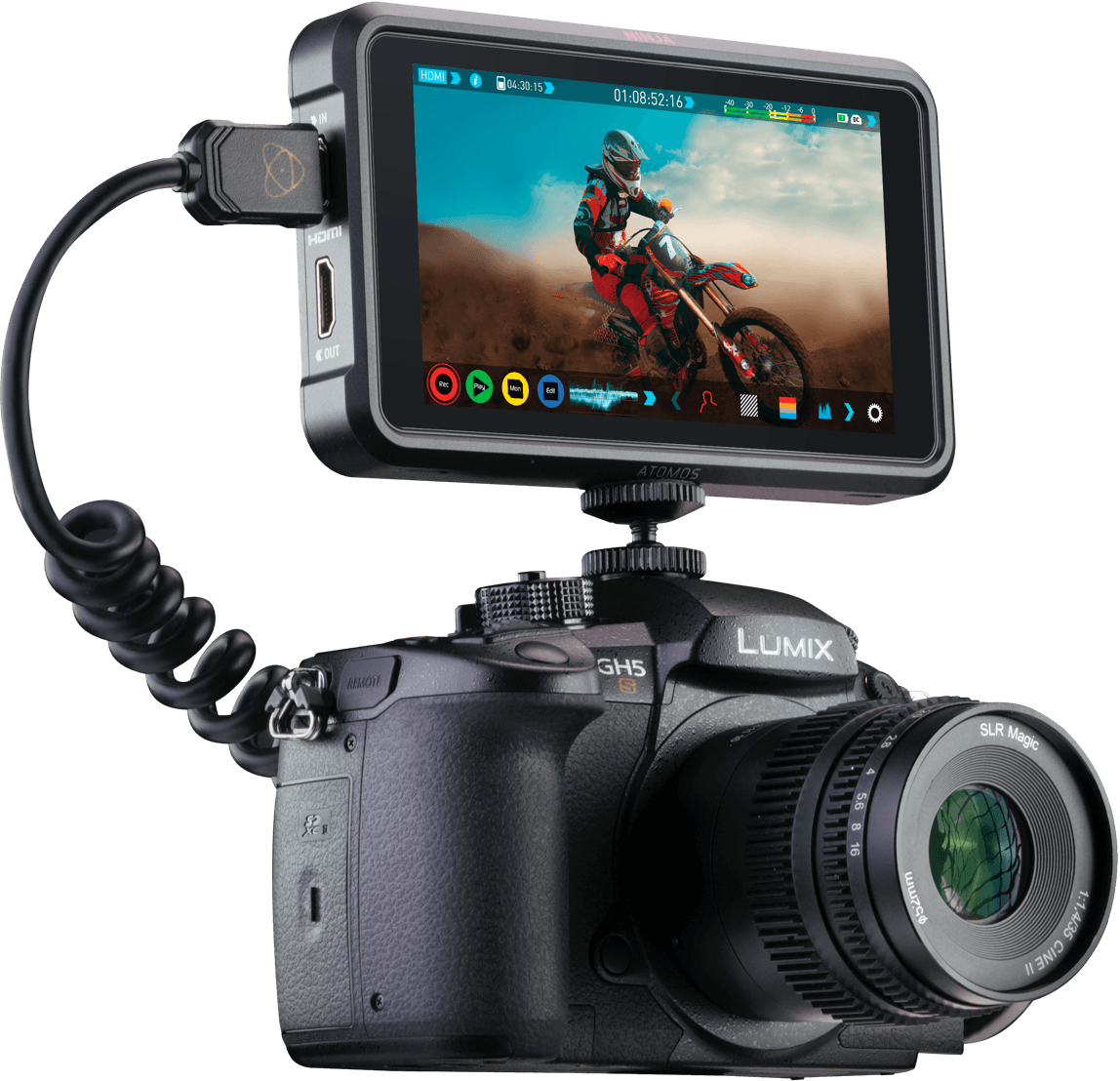

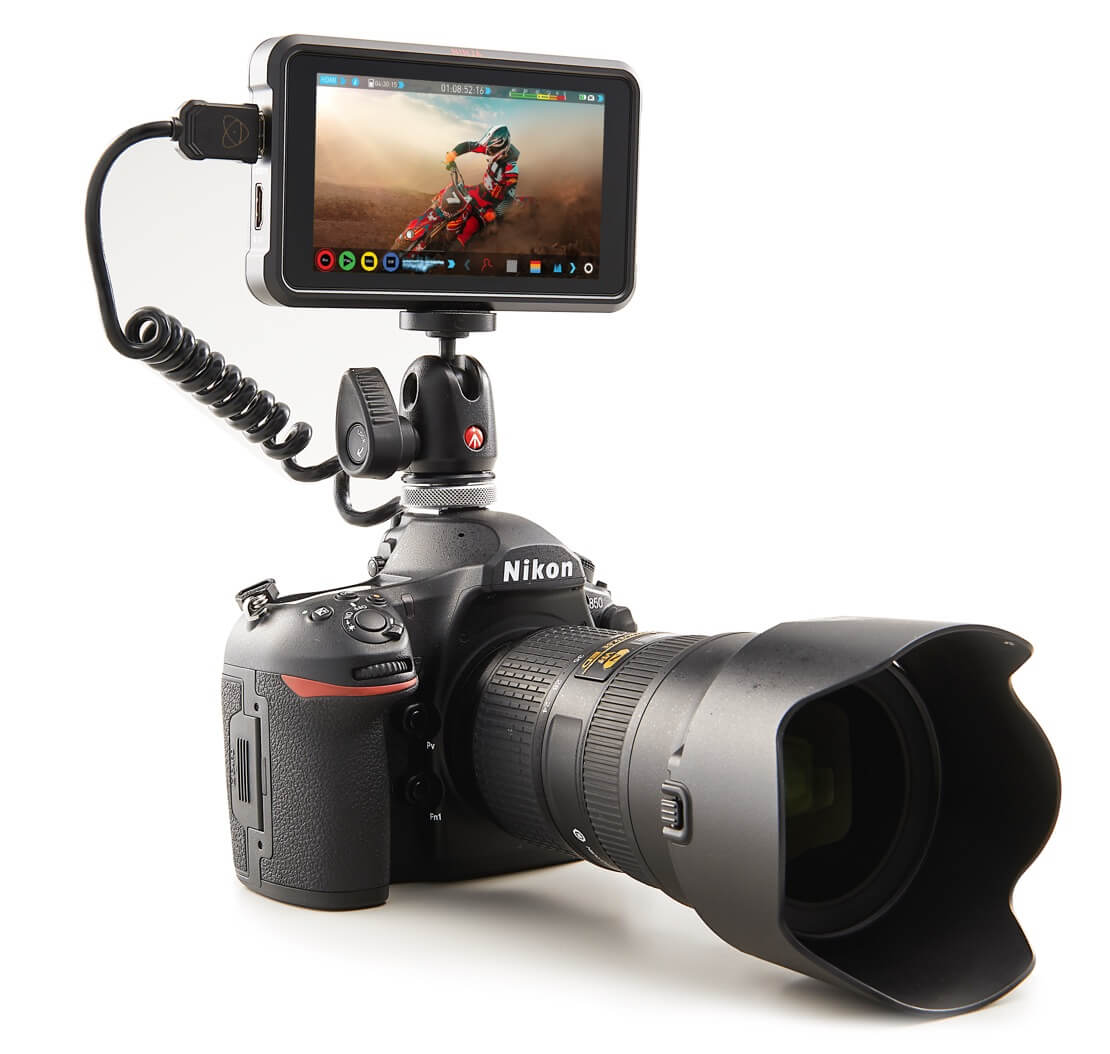

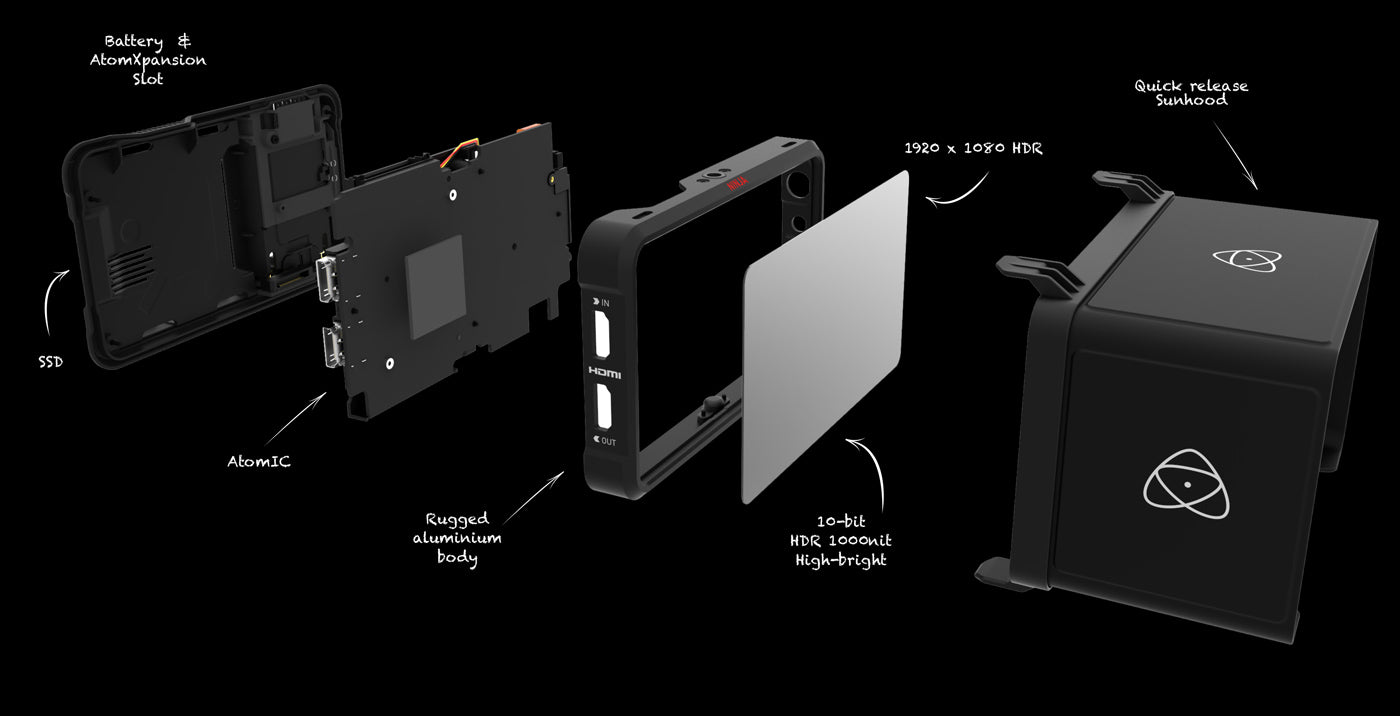

The new Ninja V features a stunningly bright 5.2” 10-bit HDR monitor with an astounding 1000 nits of output. The sleek aluminium body is crafted for maximum durability, weighing in at just 320g and measuring only 25mm thick – easily attaching to any camera rig.

AtomOS allows accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn't complete until checked; Ninja V allows instant playback, slow motion and frame-by-frame analysis for immediate review.

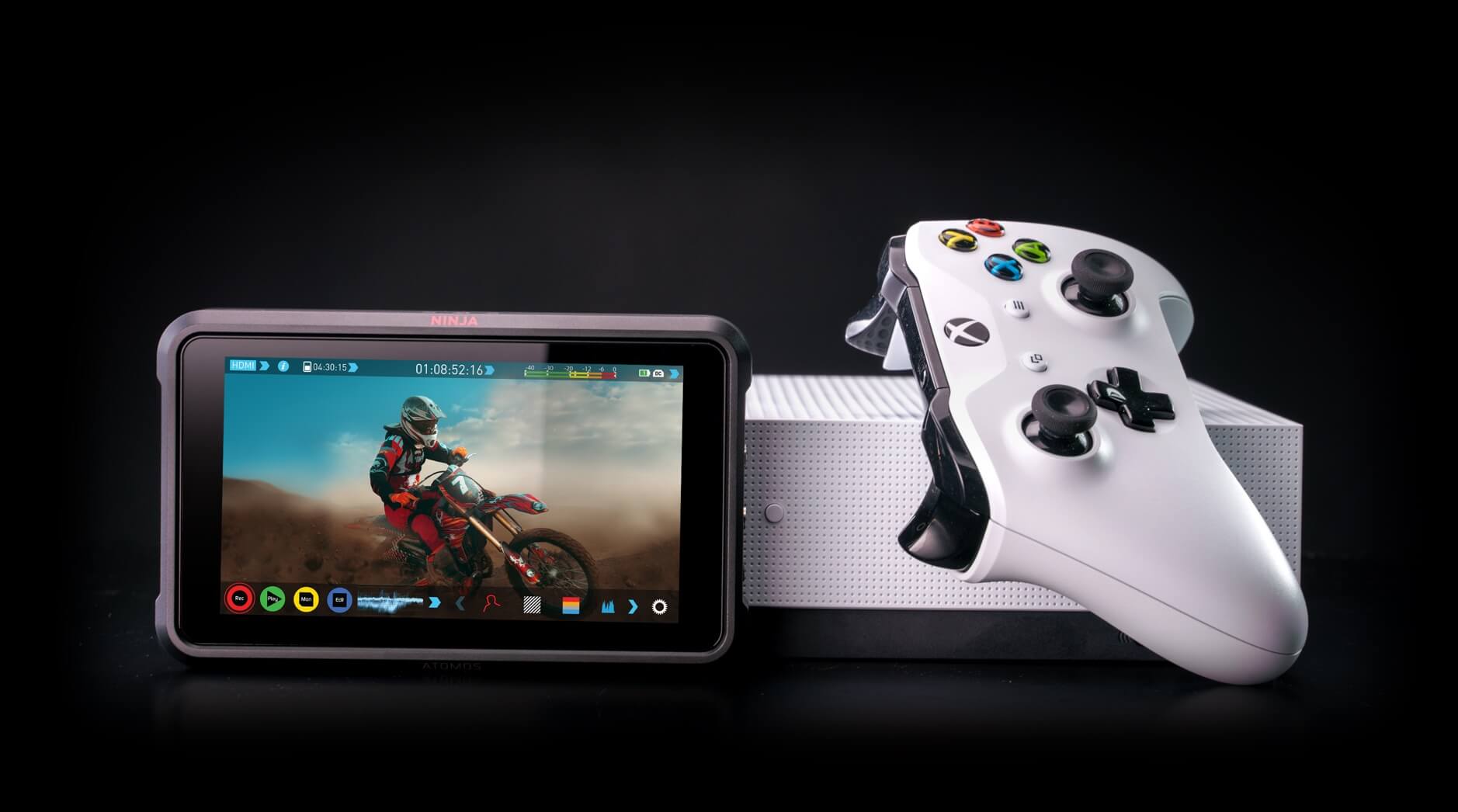

Ninja V is a stand-alone system for 4k UHD, HDR and high frame rate capture that eliminates expensive, complicated and unreliable PC setups. Ninja V enables simple recording, monitoring and instant review. Capture every detail in HDR and automatically include all the correct HDR flags ready for upload to YouTube. Ideal for games development testing, pre-release capture sessions or just to show off your skills!

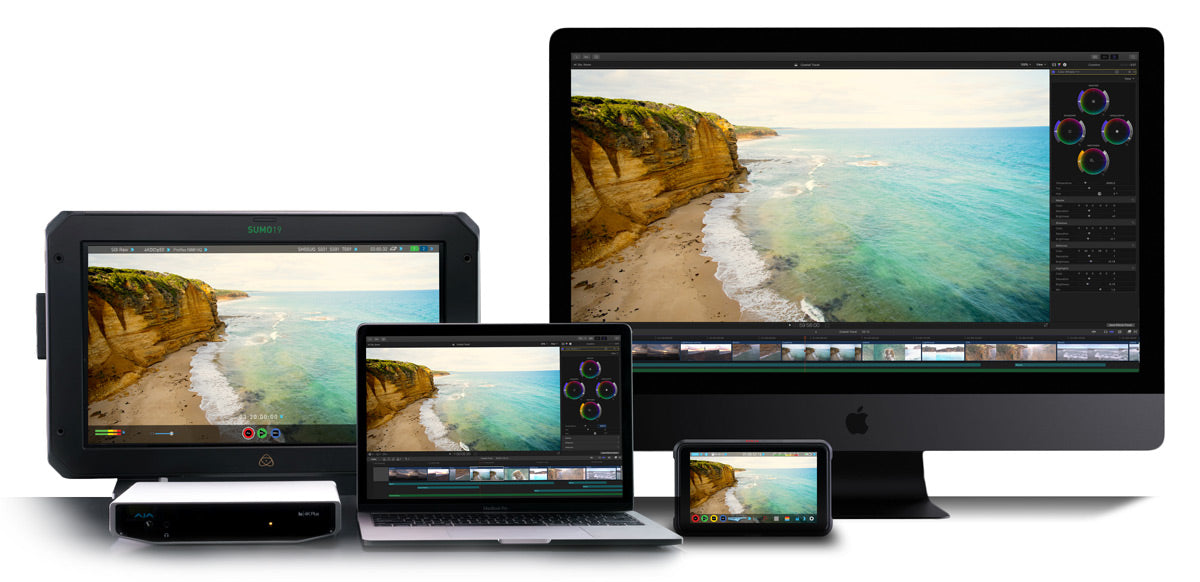

Ninja V files are available immediately on your Mac or PC. Tag on-the-fly while recording for direct-to-edit look up in Final Cut Pro X, Adobe Premiere and Avid Media Composer. Both video and gaming workflows are supported for the fastest path to your audience.

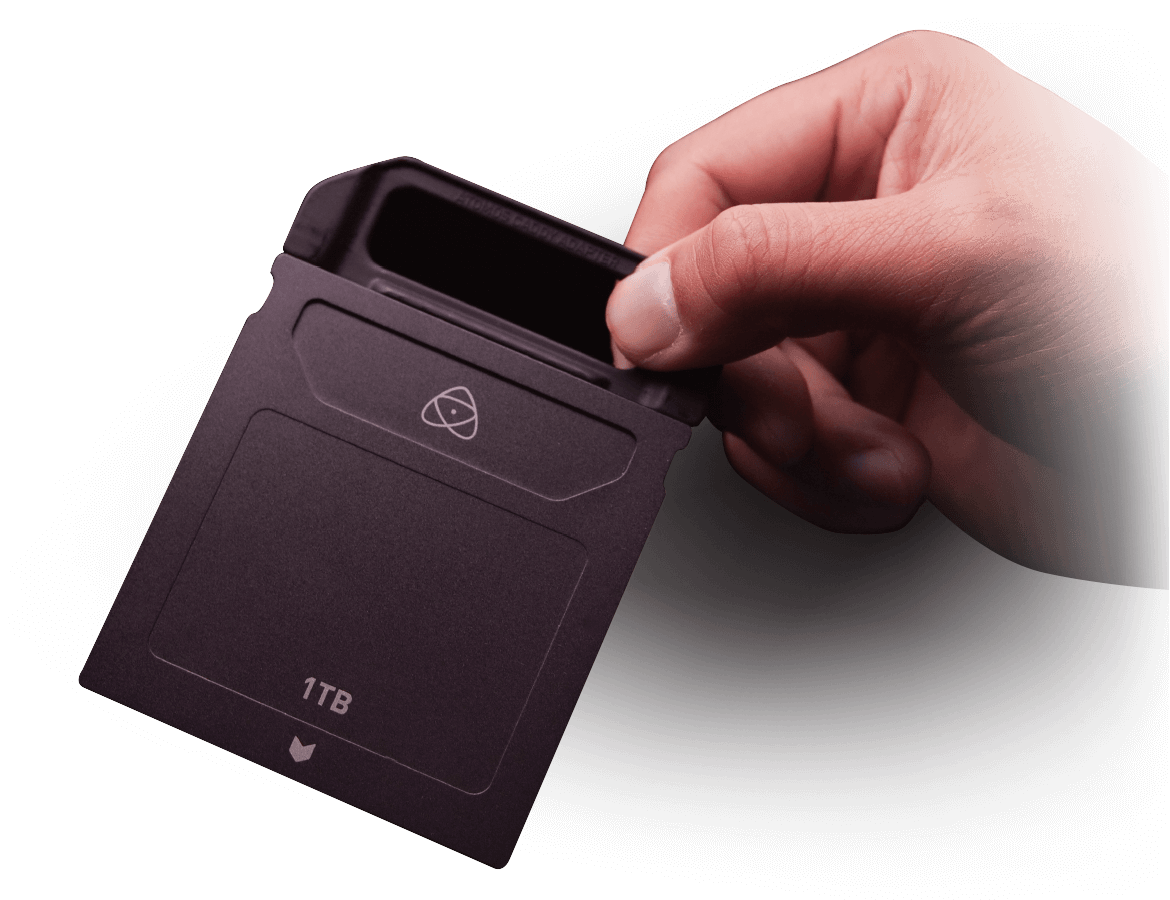

We have worked closely with our drive partners at Angelbird and Sony to bring you the AtomX SSDmini. These tiny drives are only 7mm high and 80mm long. They retain the same SATA III connector as traditional SSDs and they are backward compatible with our range of Ninja, Shogun and Sumo devices.

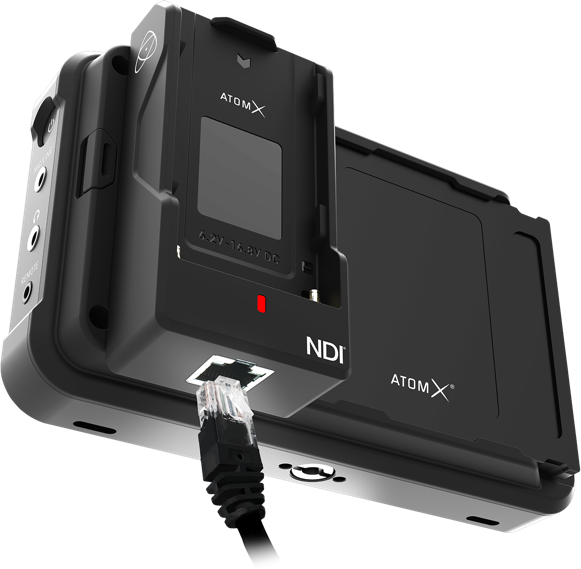

Modularity is at the heart of the Ninja V with a bi-directional high speed expansion port breaking out connectivity for I/O of video, audio and power. Atomos created AtomX to ensure users could adapt and connect to any legacy or future wireless or wired video standard. The expansion system offers endless scalability and is demonstrated by the first of many modules - the AtomX Ethernet/NDI® $199 and the AtomX Sync $149 announced at IBC 2018. These dock into the AtomX port and instantly add important features like NDI® over ethernet and Wireless Sync and Bluetooth control to the Ninja V.

Like all Atomos Monitor/Recorders, Ninja V enables audio input directly from your camera. Choose from digital source via HDMI, or analogue input via the stereo 3.5mm line/mic socket, depending on your rig.

Weight
Without batteries & media 360g / 12.7oz
With batteries & media -
Dimensions (W x H x D mm) 151 x 91.5 x 31mm
Construction Aluminium alloy chassis with ABS polycarbonate back plate
Mounting points 1/4-20 UNCscrew mount; 1x top, 1x bottom
Power
Operating power 10 - 19W
Compatible batteries NP-F series and supporting accessories
Input voltage (battery) 6.2V to 16.8V
Battery time (based on 2 x 7.4V) 5200mAh - up to 2hrs (monitor & record 4K +60p)
7800mAh - up to 3hrs (monitor & record 4K 60p)
DC In
Continuous power
* Patent pending
Continuous power with external adaptor*
Touchscreen
Size 5”
Resolution 1920 x 1080
PPI 427
Aspect ratio 16:9 native
Color Gamut REC709 HDTV
Look up table (LUT) support 3D LUT (.cube format)
Anamorphic de-squeeze 2x, 1.5x, 1.33x, Panasonic 8:3
Technology SuperAtom IPS panel (capacitive touch),
calibration to Rec.709 with optional calibration unit
HDR
AtomHDR Yes
Supported Log formats Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C,
Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog
HDR Recording (Gamut) Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3,
Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,
JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm
Flog, PQ10k, HLG
HDR Monitoring (Gamma) Sony SGamut / SGamut3 / SGamut3.cine / BT2020
Canon Cinema / DCI P3 / DCI P3+ / BT2020
Panasonic V Gamut
Arri Alexa Wide Gamut
Rec709
JVC LS300
Red DragonColor / DragonColor2 / RedColor2 /
RedColor3 / RedColor4 / RedWideGamut
HDR Monitoring (Gamut) Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out
Bit depth 10-bit (8+2 FRC)
Brightness 1000nit (+/- 10% @ center)
HDR input (PQ/HLG)
HDR output (PQ/HLG)
Yes / Yes
Yes / Yes
Video Input/Loop Out
HDMI 1 x HDMI (2.0)
SDI -
Signal Uncompressed true 10-bit or 8-bit 422
(camera dependent)
Video Output (Play Out)
HDMI 1 x HDMI (2.0)
SDI -
Signal Uncompressed true 10-bit or 8-bit 422
(playback file dependent)
Supported Loop Out Formats
HDMI to HDMI 720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120
2160p 24/25/30/50/60
SDI to SDI -
Video Signal Conversion
HDMI to SDI -
SDI to HDMI -
AtomXpansion Video Audio Power Extender In/Out
Video Up to 4Kp60
Audio 12 channels digital 24-bit 96KHz
Power 5V-16.6V
Supported Codecs & Frame Rates (Record & Playback)
Video to
ProRes / DNxHR


(DNx utilizes a .MOV wrapper)

Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB
4K DCI; 24/25/30/50/60p
4K UHD; 24/25/30/50/60p
2K
1080p; 24/25/30/50/60/100^/120^
1080i; 50/60i, 720p; 50/60p
Onboard Processing
Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
4K UHD downscale for HD monitoring Yes - Loop-out and playback
Audio In/Out (48kHz PCM Audio)
HDMI 2 or 8ch 24-bit, camera dependent
SDI -
Audio Line in / Mic in / Headphone out 2ch 48kHz 24-bit
Headphone out 3.5mm
Built-in speakers Yes
Remote Start/Stop
HDMI Auto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open Standard
SDI -
Other LANC control - Slave
Playback
Playlist / Genlock / LTC Yes / - / -
CDNG (Recorded content) N/A
ProRes (Recorded content) All recorded files can playback. Playback in slow motion.
DNxHR / DNxHD (recorded content) All recorded files can playback. Playback in slow motion.
Recording
Pre-roll record Yes (HD 8s, 4K 2s)
Custom timelapse Yes
Meta data tagging Yes (10 tags available)
Supported media 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
Master caddy case Master Caddy II (included)
75mm x 105mm x 12mm
Master caddy dock 2.5” SATA to USB 2.0/3.0
Supported applications Supported Applications FCPX/FCP7+ / Media Composer
5.0+ / Premiere 5.5+
EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /
Autodesk Smoke 2015
XML support FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
Accessories included Ninja V unit, Master Caddy II x 1,
12V-3A AC power supply
Optional extras Accessory Kit: 2 x battery,
1 x charger, 1 x power supply, EVA case,
USB dock, control cable, Dtap cable,
Master Caddy x 4, Power supply, Sun hood

Power Kit: 2 x battery,
1 x charger, 1 x power supply
Other: Atomos HDMI cable,
X-Rite i1DisplayPro calibration

All specifications correct when published, subject to E&OE.

24/30/60 frame rates also means 23.98/29.97/59.94 frame rates for all resolution

* Available in future firmware updates

*** No HDMI spec for 2K DCI

^ From supported HDMI sources such as gaming consoles and graphics cards.
