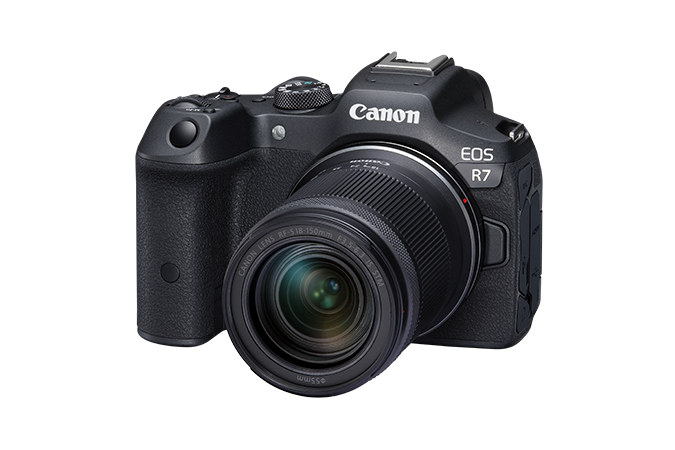

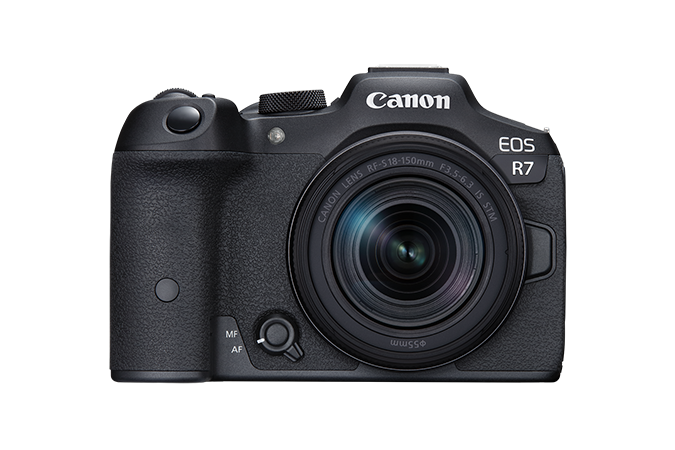

Canon EOS R7 Mirrorless Camera with 18-150mm f/3.5-6.3 IS STM


Vendor: Canon


Pin It

Canon EOS R7 Mirrorless Camera with 18-150mm f/3.5-6.3 IS STM

Canon SKU: 5137C009 | Helix SKU: CA5137C009

As Fast As Life

With a 15 FPS mechanical shutter, the high-performance EOS R7 is the most advanced APS-C camera from Canon. Featuring a high-speed shooting 32.5 MP sensor, in-body stabilization up to 7 stops with coordinated control IS1, and 4K60p video, it offers maximum versatility for capturing photo and video of fast action, wildlife, and everything in between. The perfect all-around camera for dedicated professionals and advanced hobbyists alike.

HIGH IMAGE QUALITY WITH A 32.5 MEGAPIXEL (APS-C) CMOS SENSOR

The EOS R7 features a newly developed and high image quality 32.5 Megapixel APS-C CMOS sensor. Designed for powerful and effective telephoto reach, it empowers fast continuous shooting with high speed autofocus, so you can capture moment-by-moment images with clear and impressive detail.

HIGH-SPEED SHOOTING

Whether you're shooting speeding cars, sports, wild animals, or just life as it happens, speed is on your side. The EOS R7 lets you shoot a fast 15 fps using mechanical shutter2,3, up to 30 fps with the electronic shutter3,4, and with RAW Burst Mode with ½ second pre-shooting, you can capture the perfect moment down to the split second.

BLAZING FAST AUTOFOCUS

Capture fast moving images with accuracy and ease. Canon's highly responsive Dual Pixel CMOS AF technology uses every pixel on the imaging sensor to detect focus, covering approximately 100% width and height5 with up to 651 zones.

5-AXIS IN-BODY IMAGE STABILIZATION WITH AUTO-LEVEL TECHNOLOGY6

The EOS R7 features an IBIS (In-Body Stabilization System) with up to 7 stops of shake correction with coordinated control IS1. A game changer for hand held videos and low light photography.

RECORD EACH CLIP OVER 30 MINUTES

Set up your video without worrying about it stopping after 30-minutes7.

OPTIMIZED FOR VIDEO

Get professional quality video with Smart Shoe integration for audio and HQ 4K (oversampled from 7K). Then record it all with Dual UHS II SD memory card slots for recording to both cards.

COMPATIBILITY WITH FULL RANGE OF CANON RF-S, RF, EF, EF-S MOUNTS*

Backwards compatible, future proof. Enjoy full compatibility with Canon's legendary line up of lenses past, present and future.

UPC: 013803340631

Specifications

Type

Type Digital single-lens non-reflex AF/AE camera
Image Processor DIGIC X
Recording Media SD card
  • SD card speed class-compatible.
  • Compatible with UHS-II
  • Eye-Fi cards and Multimedia cards (MMC) are not supported.
Compatible Lenses Canon RF-S/RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
Lens Mount Canon RF



Image Sensor

Type CMOS sensor (compatible with Dual Pixel CMOS AF)
Effective Pixels Approx. 32.5 megapixels
Sensor Size Approx. 22.3 x 14.8 mm
Pixel Size Approx. 3.2 µm square
Total Pixels Approx. 34.4 megapixels
Aspect Ratio 3:2 (Horizontal: Vertical)
Color Filter System RGB primary color filters
Low Pass Filter Installed in front of the image sensor, non-detachable
Dust Deletion Feature
  • Self Cleaning Sensor Unit
    • Removes dust adhering to the low-pass filter.
    • At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indicated on the screen) or manually (taking about approx. 7 sec. as indicated on the screen).
    • After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
    • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
  • Dust Delete Data acquisition and appending
    • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
    • The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software to automatically erase the dust spots.
    • Not available in focus bracketing, RAW burst mode, or multiple-exposure shooting.
  • Manual cleaning (by hand)

  • Recording System

    Recording Format Compliant to Design rule for Camera File system 2.0 and Exif 2.31*.
    *Supports time difference information.
    Image Format Still: JPEG, HEIF, RAW, Dual Pixel RAW, Raw Burst, C-RAW (CR3);
    Movies: ALL-I*, IPB, IPB Light
    * Time-lapse movies only
    HDR Mode-Continuous Shooting (1) 1 shot only
    (2) Every shot
    Advanced Shooting Operations (1) Focus Bracketing
    (2) Interval Timer
    (3) Bulb Timer
    (4) Multi-Shot NR
    File Size 3:2 Aspect Ratio
    Large/HEIF/RAW: 6960 x 4640
    Medium: 4800 x 3200
    Small 1: 3472 x 2320*
    Small 2: 2400 x 1600

    4:3 Aspect Ratio
    Large: 6160 x 4640*
    Medium: 4256 x 3200*
    Small 1: 3072 x 2320*
    Small 2: 2112 x 1600*
    RAW: 6960 x 4640

    16:9 Aspect Ratio
    Large: 6960 x 3904*
    Medium: 4800 x 2688*
    Small 1: 3472 x 1952*
    Small 2: 2400 x 1344*
    RAW: 6960 x 4640

    1:1 Aspect Ratio
    Large: 4640 x 4640
    Medium: 3200 x 3200
    Small 1: 2320 x 2320
    Small 2: 1600 x 1600
    RAW: 6960 x 4640

    • Values for Recording Pixels are rounded to the nearest 100,000th.
    • RAW/C-RAW images are generated at 3:2, with information added about the specified aspect ratio, and JPEG images are generated at the specified aspect ratio.
    • These aspect ratios (M / S1 / S2) and pixel counts also apply to resizing.
    * Indicate an inexact proportion.
    File Numbering The following file numbers can be set:
    File numbering methods
    • Continuous numbering
      • The numbering of captured images continues even after you replace the card.
    • Auto reset
      • When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
    RAW + JPEG / HEIF Simultaneous Recording Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.
    Color Space Selectable between sRGB and Adobe RGB
    Picture Style
  • Auto
  • Standard
  • Portrait
  • Landscape
  • Fine Detail
  • Neutral
  • Faithful
  • Monochrome
  • User Defined 1-3

  • White Balance

    Settings
    1. Auto (Ambience priority/White priority)
    2. Day Light
    3. Shade
    4. Cloudy1
    5. Tungsten light
    6. White fluorescent light
    7. Flash
    8. Custom2 (Custom WB)
    9. Color temperature
    1Effective also in twilight and sunset.
    2Setting method options include [Custom White Balance] and [Shoot to set WB].
    Auto White Balance Option between ambience priority and white priority settings.
    White Balance Shift Blue/amber bias: ±9 levels
    Magenta/green bias: ±9 levels
    • Corrected in reference to the current WB mode's color temperature.
    • Blue/amber and magenta/green shift can be set at the same time.


    Viewfinder

    Type OLED color electronic viewfinder; approx. 2.36 million dots resolution
    Coverage Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 22mm eyepoint).
    Magnification / Angle of View Approx. 1.15x / Approx. 33 degrees (with 3:2 display, an 50mm lens at infinity, -1 m--1)
    Eye Point Approx. 22mm (at -1 m-1 from the eyepiece lens end)
    Dioptric Adjustment Range Approx. -4.0 to + 2.0 m-1 (dpt)


    Autofocus

    Focus Method Dual Pixel CMOS AF
    Number of AF Zones Available for Automatic Selection AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%*
    Stills: Max. 651 zones (31 x 21)
    Movies: Max. 527 zones (31 x 17)
    AF Working Range EV -5 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at room temperature, ISO 100)
    * Except RF lenses with a Defocus Smoothing (DS) coating.
    Focusing Brightness Range (Movie Recording) Full HD 29.97fps : EV -3.5 to 20
    With an f/1.2 lens*, center AF point, One-Shot AF,at room temperature, ISO 100
    * Except RF lenses with a Defocus Smoothing (DS) coating.
    AF Methods
    AF Method
    Whole area AF
    Spot AF
    1-point AF
    Expand AF Area
    (Above, below, left and right/Around)
    Expand AF Area: Around
    Flexible Zone AF 1,2,3
    Subject to Detect People, Animals, Vehicles, No Priority
    * Available with [AF Area] set to Whole area AF
    Focus Mode Switch AF / MF
    • Applies when an RF or RF-S lens without a focus mode switch is attached.
    • When lenses with a focus mode switch are attached, the setting on the lens takes precedence.

    Exposure Control

    Metering Modes Real-time metering with image sensor (384 [24x16 zone metering])
    1. Evaluative metering
    2. Partial metering (approx. 6.0% of the area at the center of the screen)
    3. Spot metering (approx. 3.0% of the area at the center of the screen)
    4. Center-weighted average metering
    Metering Range Still Photo Shooting : EV -2 to 20 (at room temperature, ISO 100)
    Movie Recording: EV 0 to 20 (at room temperature, ISO 100)
    Exposure Control Modes Click here to view full specifications PDF
    ISO Speed Range

    Available ISO speeds; user-set

    Normal ISO 100-32000 (in 1/3- or 1-stop increments)
    Expanded H (equivalent to ISO 51200)
    • For [Highlight tone priority], the settable ISO speed range will be ISO 200 to 32000.
    • Expanded ISO cannot be set for HDR mode or during HDR PQ shooting.

    User-defined ISO range - still photo shooting

    ISO Speed Range ISO Speed
    Minimum L 100 - 32000 (in 1-stop increments)
    Maximum ISO 200 - H (51200) (in 1-stop increments)

    * Expanded ISO speeds are noted as being equivalent to these speeds.

    User-defined Auto ISO range - still photo shooting

    Auto Range ISO Speed
    Minimum ISO 100-25600 (in 1-stop increments)
    Maximum ISO 200-32000 (in 1-stop increments)

    ISO Auto details in still photo shooting

     Shooting Mode  No Flash  Using Flash
     Variable control of maximum ISO Auto limit for E-TTL  Compatible lens  Incompatible lens
     Creative Zone  P  ISO 100*1*2-32000*2  ISO 100**1*2-6400*2  ISO 100**1*2-6400*2
     TV
     AV
     M
     B  ISO 400*3   ISO 400*3  ISO 400*3
     Basic Zone  A+  ISO 100-6400  ISO 100-6400  ISO 100-1600
     SCN  Varies by shooting mode
     Creative Filters  Varies by shooting mode

    *1 ISO 200 when [Highlight tone priority] is set to [Enable] or [Enhanced].
    *2 Varies depending on [Maximum] and [Minimum] of [Auto range].
    *3 If outside the setting range, changed to the value most close to ISO 400.

    Exposure Compensation
      Photo Movie
     Manual ±3 stops in 1/3- or 1/2-stop increments
    AEB ±3 stops in 1/3- or 1/2-stop increments
    AE Lock
  • Auto AE lock
    • The metering mode for AE lock after focus can be customized.
  • User-applied AE lock
    • In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
    • Enabled in all metering modes.

  • Shutter

    Type
    1. Mechanical
    2. Electronic 1st-Curtain
    3. Electronic Shutter (1st and 2nd curtain - silent*)
    *Cannot be used in conjunction with the following functions: flash photography, HDR shooting, multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High].
    * A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.
    * In electronic shutter shooting under conditions such as flash firing by other cameras or with fluores-cent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.
    Shutter Speeds When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb
    When [Electronic] is set: 1/16000-30 sec.
    X-Sync Speed Mechanical Shutter: 1/250 sec.
    Elec. 1st-curtain: 1/320 sec.
    Shutter Release Soft-touch electromagnetic release
    Self Timer 10-sec. delay, 2-sec. delay
    Shutter Lag Time
      Mechanical Shutter Electronic 1st Curtain Electronic shutter
    Shutter-release time lag *Measured with shutter button pressed fully from half-pressed position



    Approx. 99ms Approx. 50 ms Approx. 50 ms

    Based on Canon testing standards.



    Image Stabilization (IS Mode)

    Still Photo IS In-body IS operation can be selected when using a non-IS lens.
    • Always on
    • Only for shot
    5-Axis Image Stabilization with RF/RF-S, EF/EF-S Lenses Click here to view full specifications PDF
    EOS R7 Co-ordinated In-Body Image Stabilizer Still Shooting Performance with RF & RF-S Lenses Click here to view full specifications PDF



    External Speedlite

    E-TTL Balance Ambience priority, standard, flash priority
    Compatible E-TTL Speedlites Canon EX- and EL-series Speedlites
    E-TTL II Flash Meterings
    1. Evaluative (Face Priority)
    2. Evaluative
    3. Average
    Slow Sync (P/AV Modes)
     Mechanical Shutter  Electronic 1st curtain
     1/250-30 sec. auto  1/320-30 sec. auto
     1/250-1/60 sec. auto  1/320-1/60 sec. auto
     1/250 sec. (fixed)  1/320 sec. (fixed)
    Flash Function Menu Provided for EX- and EL-series Speedlites
    Flash Exposure Compensation ±3 stops in 1/3- or 1/2-stop increments
    Continuous Flash Control
    1. E-TTL each shot
    2. E-TTL 1st shot


    Drive System

    Drive Modes and Continuous Shooting Speed Click here to view full specifications PDF
    Still Photo File Size/Number of Possible Shots/Maximum Burst for Continuous Shooting Click here to view full specifications PDF



    HDR Shooting - Still

    HDR PQ Disable / Enable
    * Can be used in conjunction with Auto Lighting Optimizer.
    HDR PQ Shooting - Still
    Recording format Bit depth Color sampling method HDR specification
    HEIF 10 bit YCbCr 4:2:2 Rec. ITU-R BT.2100 (PQ)
    HDR PQ Shooting - Movie
    Recording format Bit depth Color sampling method HDR specification
    MP4 10 bit YCbCr 4:2:2 Rec. ITU-R BT.2100 (PQ)


    Video Shooting

    Focusing Dual Pixel CMOS AF II
    Exposure Compensation ±3 stops in 1/3- or 1/2-stop increments
    Canon Log Canon Log 3
    Temperature Warning The camera warns of rising internal temperatures by means of icons and indicators.
    Click here to view full specifications PDF
    Estimated Camera Recovery Time Estimated recovery times are indicated below. These are affected by various factors such as ambient temperature, continued camera operation and the selected shooting resolution. The time until full record time is available, will vary with ambient temperature.
    Click here to view full specifications PDF
    Movie Recording Format Click here to view full specifications PDF
    Estimated Recording Time & Data Click here to view full specifications PDF


    LCD Screen

    Type TFT color, liquid-crystal monitor
    Monitor Size 3.0-inch (screen aspect ratio of 3:2)
    Dots Approx. 1.62 million dots
    Coverage Approx. 100% vertically/horizontally
    Brightness Control Manually adjustable to one of seven brightness levels
    Coating
    • Anti-smudge coating applied.
    • Anti-reflection coating not applied.
    Interface Languages 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)


    Playback

    Display Format
    Item Still Photo Movie
    -
    Magnify zoom display 1.5x-10x (5 levels)
    AF point display Yes -
    Grid display Off / 3x3 / 6x4 / 3x3+diag
    Rating OFF / 1 to 5 Stars
    Select images / Select range / All images in folder / All images on card /
    All found images
    Image Search Search conditions
    Rating / Date / Folder / Protect / Type of file
    Protect Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card / All found images / Unprotect all found images
    Cloud RAW image processing  Supported -
    RAW image processing Supported
    RAW Burst processing Supported
    HEIF -> JPEG Conversion Supported -
    Cropping Supported -
    Highlight Alert The white areas with no image data will blink.
    Histogram Brightness and RGB


    Quick Control Function

    Function The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.


    Image Protection and Erase

    Protection
    1. Single image (select image)
    2. Select range
    3. All images in a folder
    4. All images on card
      • Image browsing and image search can be based on ratings.
      • Ratings-based image selections also possible with DPP.
    5. All found images (only during image search)
    Erase

    Except protected images

    1. Select images to erase
    2. Select range
    3. All images in folder
    4. All images on card
    5. All found images (only during image search)

    Direct Printing

    Compatible Printers Not Supported

    DPOF: Digital Print Order Format

    DPOF Not Supported


    Wi-Fi

    Standards Compliance IEEE 802.11b/g/n
    Transmission Method DS-SS modulation (IEEE 802.11b)
    OFDM modulation (IEEE 802.11g/n/a/ac)
    Transition Frequency (Central Frequency) 2.4 GHz band
    Frequency: 2412 to 2462 MHz Channels: 1 to 11 channels
    Security
    Connection Method Authentication Encryption
    Encryption Key Format and Length
    Camera Access Point WPA2/ WPA3-Personal AES ASCII 8 characters
    Open Disable
    Infrastructure Open WEP
      Hexadecimal 10 digits
    • Hexadecimal 26 digits
    • ASCII 5 characters
    • ASCII 13 characters
    Disable
    Shared key WEP Same as WEP above
    WPA-PSK
    WPA2-PSK
    WPA3-Personal

    TKIP
    AES
    1-127 characters
    Communication with a Smart Phone Images can be viewed, controlled, and received using a smartphone.
    Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
    Images can be sent to a smartphone.
    Firmware can be downloaded and saved to a card in the camera using Camera Connect.
    Remote Operation Using EOS Utility The camera can be controlled via Wi-Fii® using EOS Utility.
    Print from Wi-Fi Printers Supported
    Send Images to a Web Service Still photos (RAW, C-RAW, HEIF, and JPEG) and movies (MP4) can be uploaded to image.canon server album.
    With the image.canon server, images can be sent to social media or a photo album link can be sent (by the image.canon specifications).


    Bluetooth

    Standards Compliance Bluetooth Specification Version 4.2 compliant (Bluetooth low energy technology)
    Transmission Method GFSK modulation


    Customization

    Custom Functions Customizable Dials
    Still photo  Movie
    Shutter button (half-press) Yes  -
    Movie shooting button Yes  -
    Multi-function () button Yes Yes
    ISO speed button Yes  Yes
    AF-ON button Yes   Yes
    AE lock (<*>) button Yes   Yes
    AF point button Yes  Yes
    DOF preview button Yes   Yes
    Lens function () button  Yes  Yes
    Cross keys: Up button Yes   Yes
    Cross keys: Left button  Yes Yes
    Cross keys: Right button  Yes Yes
    Cross keys: Down button  Yes  Yes
    Set button  Yes  Yes
    Multi-controller  Yes Yes
    Custom Dials
    Main dial
    Quick control dial
    Control ring
    My Menu Registration
    • Up to six top-tier menu items and Custom Functions can be registered.
    • Up to five My Menu tabs can be added.
    My Menu tab overall operations
    • Adding a tab
    • Deleting tabs in a batch
    • Deleting all tab items
    • Setting the menu display
    My Menu tab detailed operations
    • Selecting a registered item
    • Sorting registered items
    • Deleting selected registered items
    • Deleting registered items in a batch
    • Deleting tabs
    • Changing a tab name (16 ASCII characters)


    Interface

    USB Terminal

    Equivalent to Superspeed PLus USB (USB 3.2 Gen 2)

    • For PC communication
    • Terminal type: USB Type-C
    • Shared with terminal for in-camera charging with USB Power Adapter PD-E1.
    • In-camera Charging: Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1.
    Video Out Terminal

    HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible

    • Images can be displayed through the HDMI output and on screen at the same time.
    • Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
    Clean HDMI Output

    Provided

    Microphone Input Terminal

    3.5mm diameter stereo mini jack

    Headphone Terminal

    3.5mm diameter stereo mini jack

    Remote Control Terminal

    Remote Switch RS-60E3 type terminal supported

    Wireless Remote Control

    Compatible with the Wireless Remote Control BR-E1
    Compatible with infrared remote controls such as Remote Controller RC-6

    Multi-Function Shoe

    Supported


    Power Source

    Battery LP-E6NH/LP-E6N/LP-E6*
    • With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible.
    • With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible.
    Battery Check

    Automatic battery check when the power switch is turned ON.
    Displayed in 6 levels on top LCD panel.

    • Battery level can be checked on the LCD panel and in the viewfinder.
      Battery Info display in Set-up Menu:
    • Type of power source used.
    • Remaining capacity (percentage of battery charge remaining).
    • Recharge performance: (3-level display of battery's ability to hold a charge)
    Start-Up Time Approx. 0.4 sec.
    • Based on CIPA testing standards.


    Dimensions & Weight

    Dimensions (W x H x D) Approx. 5.20 x 3.56 x 3.61 in. / 132.0 x 90.4 x 91.7 mm
    • Based on CIPA standards.
    Weight Approx. 1.1 lbs (18.70 oz) Body Only
    Approx. 1.3 lbs (21.59 oz) With battery,and memory card


    Operating Environment

    Working Temperature Range 32-104° F / 0-+40°C
    Working Humidity Range 85% or less



    *Note: Prices and specifications subject to change without notice.

    EOS R7
