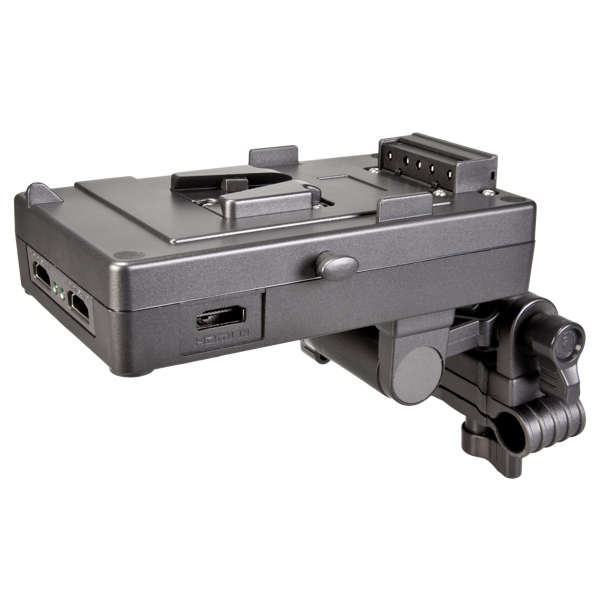

The V-Mount Battery System with HDMI Splitter accepts all standard v-mount batteries. It mounts onto standard 15mm rods and features four (4) female D-tap connections: DC5V, DC8V, DC12V, and DC14.4V. Whether you need to power an on-camera light, a monitor, or an onboard accessory, this V-Mount Battery System will feed your accessories’ power for an extended period of time.
As well as supplying additional power outputs, this system also contains a built-in HDMI splitter. A single female HDMI input, outputs two (2) female HDMI outputs
The battery system is also capable of tilting up and down, allowing for a configuration that meets the needs of your camera rig set-up.

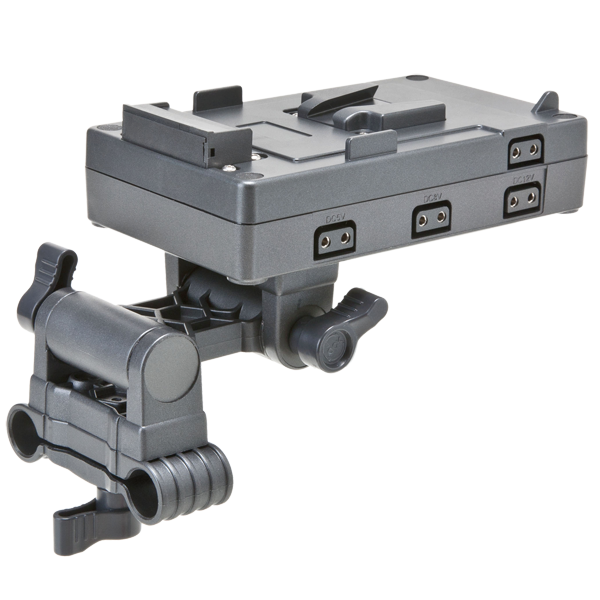

Four (4) D-tap Outputs
Two (2) HDMI Outputs
Adjustable Tilt of Battery Plate
Fits onto 15mm Rods
Power Outputs: Four (4) D-tap outputs: DC5V, DC8V, DC12V, 14.4V
Operating Voltage: DC16V
Battery Mount/Connection Type: V-mount
HDMI Input: Female (Type A) HDMI
HDMI Output: Two (2) Female (Type A) HDMI
Nominal Dimensions: 16.5 x 10 x 9.5 (cm)
Nominal Weight: 12 oz / 340 g

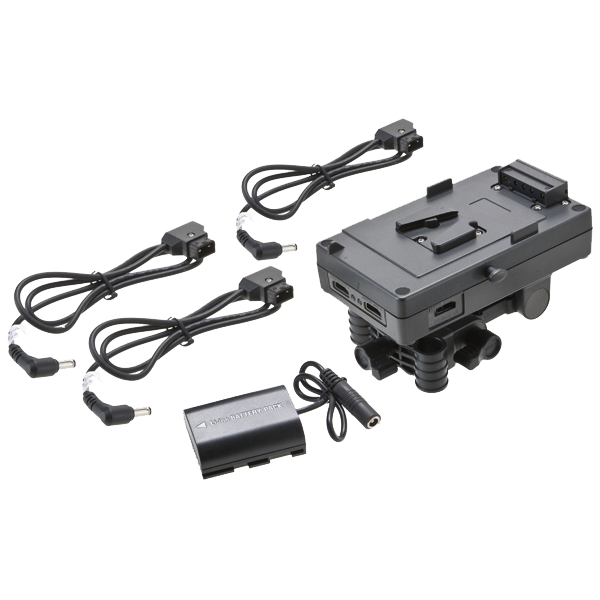

(1) x V-mount Battery System
(3) x D-tap Male to DCΦ2.5 Female - 20" - 10206002;
(1) x Female DCΦ2.5 to Canon LP-E6- 10208007;
The 3/8" Finger Nuts are used to securely lock the 9.Solutions 3/8" rods to different accessories. The 3/8" Connecting Nut is used to connect multiple 9.Solutions 3/8" rods together, allowing you to make longer rods.
Multiple rods can be used to create larger structures for rigging small cameras, lights, and a variety of other equipment.
