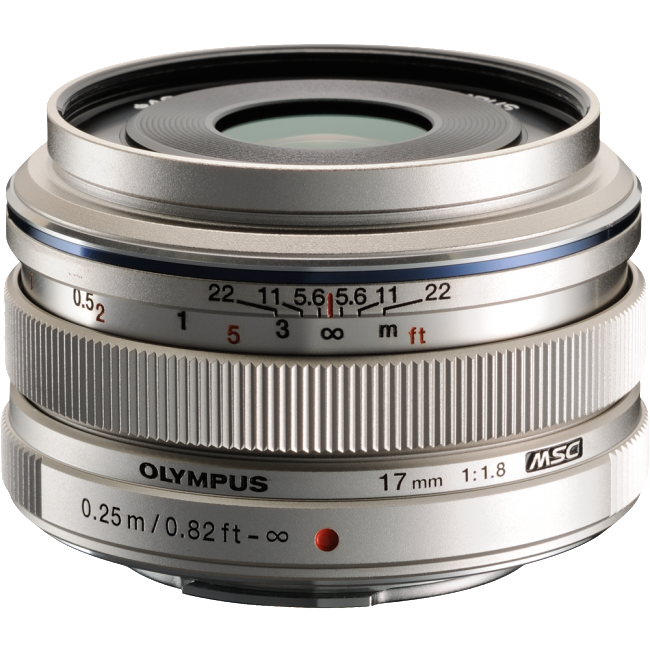

Olympus M.Zuiko Digital 17mm f1.8 - Silver

Vendor: Olympus

Pin It

Olympus M.Zuiko Digital 17mm f1.8 - Silver

Olympus SKU: V311050SU000 | Helix SKU: OYV311050SU000

This beautiful full-metal single-focal-length, wide-angle lens is ideal for shooting high-quality, dramatic landscapes and portraits. This super-fast f1.8 M.Zuiko lens helps capture brilliant low-light shots. The snap ring enables photographers to pan focus with a distance indicator.


Do you enjoy switching from autofocus to manual focus for greater creative control? The 17mm f1.8 makes it easy with a two-position snap focus ring. With the ring in the autofocus position, you can either use AF or switch to manual focus using the camera controls. But when you want to shoot old-school, just move the snap ring to engage the Manual Focus Clutch for the satisfying feel of a classic mechanical lens as you focus in on your subject. A distance/depth-of-field scale on the lens barrel makes it easy to calculate the correct focus position; it’s great for zone focusing when you want to be stealthy while shooting street scenes.


Whether your preferred subjects are friends and family, panoramic landscapes, unique architecture or all of these and more, the 17mm wide-angle is the perfect addition to your kit. It’s also a lens you can grow with; use the manual focus options to become a more complete photographer and capture the beautiful images you see in your mind’s eye for posterity.


One of this lens’s most interesting features is the unique-to-Olympus Movie & Still Compatible mechanism, or MSC. This technology provides amazingly fast – and nearly silent – autofocus operation. You’ll really notice the benefit when you play back your HD video and the only thing you hear is the ambient background noise in the scene you were filming; what you won’t hear is the sound of the lens moving as it changes focus. This lens is perfect for tracking action. With MSC and the super-bright f1.8 aperture, you can film a school play or indoor sporting event in low light and still get excellent results.

Focal Length 17mm
35mm Equivalent Focal Length 34mm
Lens Construction 9 elements in 6 Groups
Dust & Drip Proof No
Closest Focusing Distance 0.25m
Maximum Aperture f1.8
Minimum Aperture f22
Angle of View 65 Degree
Max. Image Magnification 0.08x
35mm Equivalent Max. Image Magnification 0.16x
Minimum Field Size 162x216mm
Number of Blades 7 (Circular Aperture Diaphragm)
Filter Size Diameter 46mm
Weight 120g
AF System High-speed Imager AF (MSC)

    MTF 17mm F1.8 Chart Lens Element Diagram

    Lens Cap (LC-46)

    Lens Rear Cap (LR-2)

    Instruction Manual

    Olympus Worldwide Warranty Card
