Tamron SKU: AFA057S-700 | Helix SKU: TRAFA057S700

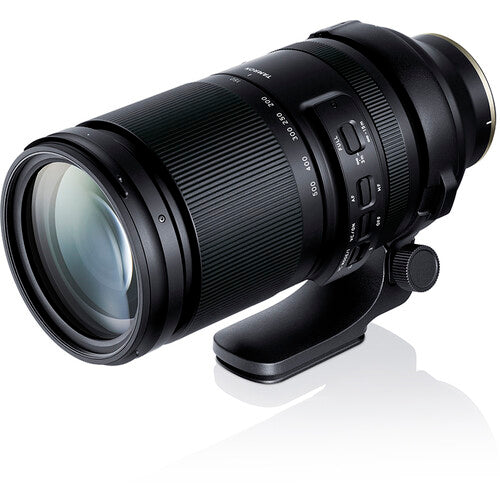

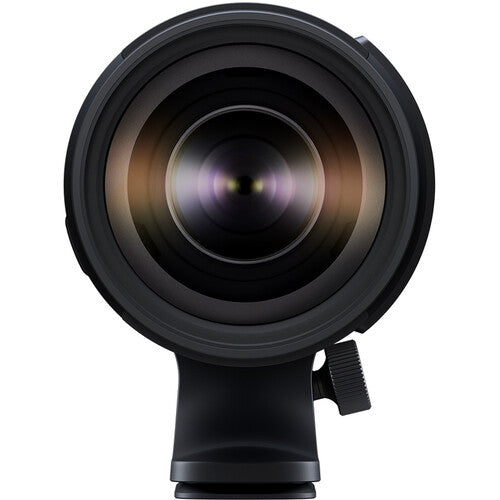

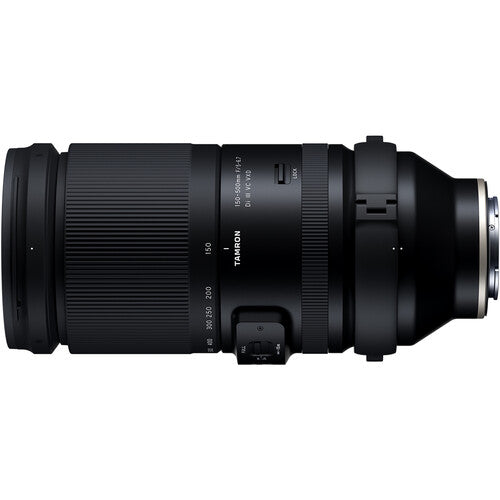

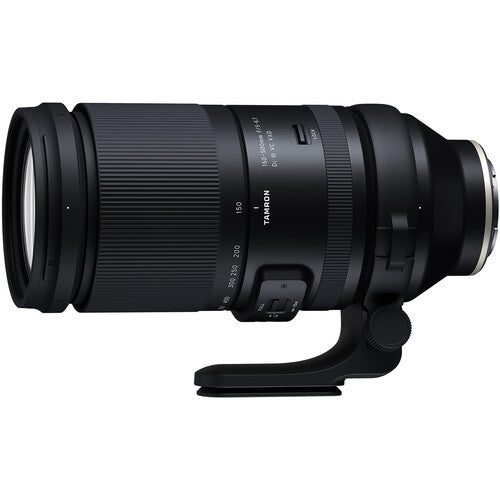

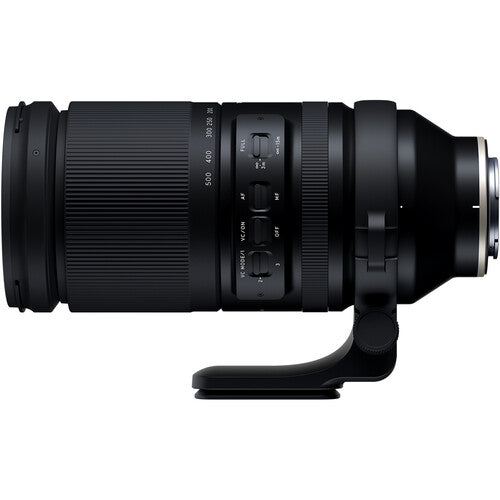

Considering its pairing with mirrorless cameras, TAMRON pursued a compact size that allows handheld shooting while developing the 150-500mm F5-6.7. With a length of 209.6mm (8.3 in) and maximum diameter of 93mm, the 150-500mm F5-6.7 is astonishingly compact for a 500mm-class ultra-telephoto zoom lens built for use on full-frame mirrorless cameras. Even when extended to the 500mm telephoto end, the lens has a suppressed length of around 283mm (11.1 in). Another distinctive feature is that the arc of rotation of the zoom ring is small—only 75°—which enables swift adjustment to the desired focal length with minimal movement.
In addition to covering a broad range of focal lengths, the 150-500mm F5-6.7 zoom has high resolving power with excellent image-rendering performance across the entire zoom range. The optical construction features 25 elements in 16 groups. The effective placement of special lens elements—including XLD (eXtra Low Dispersion), LD (Low Dispersion) and hybrid aspherical lens elements—enables the 150-500mm F5-6.7 to produce clear images while controlling chromatic aberrations. BBAR-G2 (Broad-Band Anti-Reflection Generation 2) Coating is used to suppress ghosting and flare, which commonly occur under backlit conditions. These features allow the lens to produce finely detailed images of a wide variety of subjects including wild animals, birds, nature and sports, while producing soft and beautiful bokeh effects.
The 150-500mm F5-6.7 zoom’s AF drive system is equipped with the VXD (Voice-coil eXtreme-torque Drive) linear motor focus mechanism. VXD delivers extreme high-speed and high-precision movement and ensures exceptionally responsive performance. Even when shooting at the ultra-telephoto end with a focal length of 500mm, the 150-500mm F5-6.7 enables comfortable, stress-free focusing at all shooting distances from near to far. Focus tracking performance is also very high, facilitating shooting of fast-moving subjects, such as when photographing wild birds, sports, vehicles and wildlife in general. The linear motor also suppresses drive noise and vibrations during focusing, making it ideal for shooting both still photos and video in environments that demand quietness.
When shooting in the ultra-telephoto range, even the smallest vibrations can lead to loss of image clarity. The 150-500mm F5-6.7 is equipped with VC (Vibration Compensation) functionality to support sharp images despite unavoidable camera shake. VC delivers powerful support for handheld shooting of scenes with low light levels, such as evening scenes and indoor shots, without the use of a tripod. The lens also features a VC mode selection switch with three modes including a dedicated panning mode (Mode 1: Standard, Mode 2: Exclusively for Panning, and Mode 3: Framing priority), thereby enabling selection of the ideal VC mode to match shooting conditions and preferences.
VC MODE 3 prioritizes framing and helps you to frame fast-moving subjects easily. In mode 3, VC stabilization is effective from the time the camera power is turned on.
The 150-500mm F5-6.7 zoom lets users freely enjoy telephoto macro shooting of subjects at closeup distances. The lens has an MOD (Minimum Object Distance) of 0.6m (23.6 in) at the 150mm wide-angle end, and 1.8m (70.9 in) at the 500mm telephoto end. More remarkably, the maximum magnification ratio at the 150mm end is 1:3.1, offering excellent close-up shooting capabilities for an ultra-telephoto zoom lens. The versatile performance of the 150-500mm F5-6.7 enables shooting of a diverse range of scenes from plants and insects to closeup tabletop photos. It also allows users to shoot very dramatic images because it gives the illusion that the distance between objects is less than in real life. Secondarily, it’s also possible to get interesting head-and-shoulder portraits because of this compression effect.
In the development and design of the 150-500mm F5-6.7 zoom, TAMRON emphasized usability so that users can fully immerse themselves in the world of ultra-telephoto zoom lenses without minor annoyances.
|Angle of View
(for full-frame mirrorless format)
|Optical Construction||25 elements in 16 groups|
|Minimum Object Distance||0.6m (23.6 in) (WIDE) /
1.8m (70.9 in) (TELE)
|Maximum Magnification Ratio||1:3.1 (WIDE) / 1:3.7 (TELE)|
|Length*||209.6mm (8.3 in)|
|Weight||1,725g (60.8 oz) (without tripod mount included) /
tripod mount 155g (5.5 oz)
|Aperture Blades||7 (circular diaphragm)**|

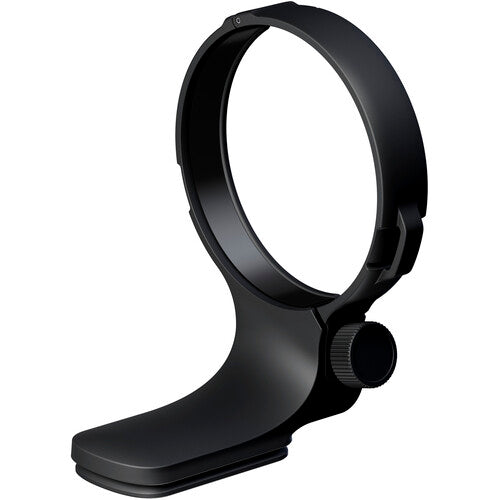

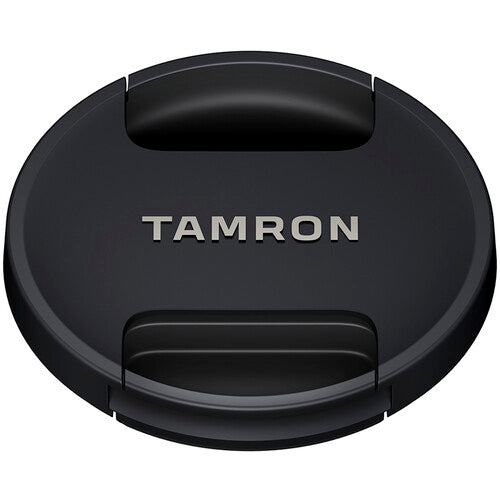

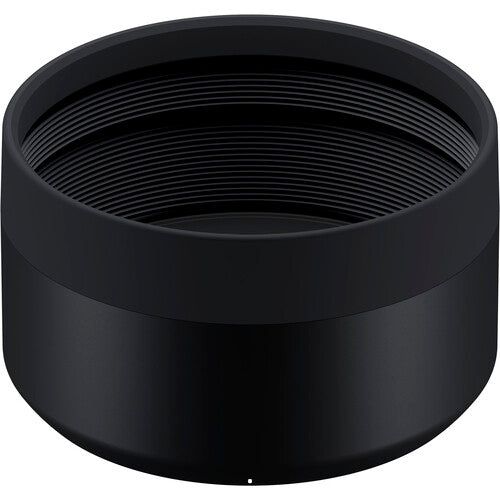

|Standard Accessory||Round-shaped hood, Lens caps, Tripod mount|

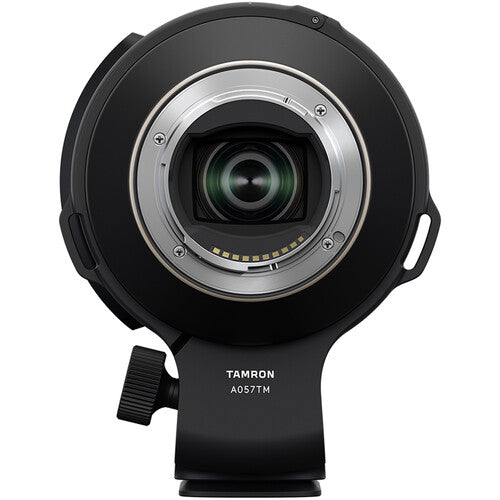

|Compatible Mounts||Sony E-mount|
* Length is the distance from the front tip of the lens to the lens mount face.
** The circular diaphragm stays almost perfectly circular up to two stops down from maximum aperture.
*** will fit APS-C mirrorless
Note: Tamron lenses cannot guarantee functionality with cinema cameras.
Specifications, appearance, functionality, etc. are subject to change without prior notice.
This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
