Learn more about theD6
Mfr SKU: 4754 | Helix SKU: NK4754
Replacement Eyepiece for select Nikon camera viewfinders.
Starting at $2,999.95
Starting at $1,599.95
Starting at $2,749.95
Mfr SKU: 4755 | Helix SKU: NK4755
Optional replacement finder eyepiece is a transparent plastic optical element with a special surface coating to reduce fogging.
$ 22.50 - Sold Out
Nikon SKU: 4758 | Helix SKU: NK4758
Five correction lenses from –3 to +2 m-1 for circular-eyepiece cameras.

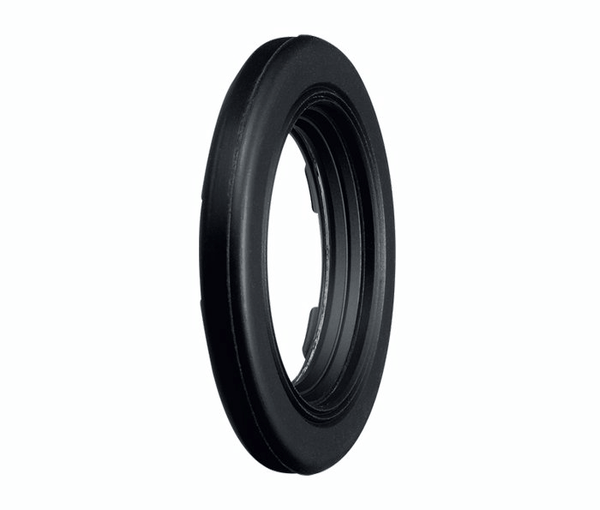

Correction lens, 0.0 strength, for Nikon D-SLRs that feature a circular-eyepiece.
Optional Nikon eyepiece diopters allow you to optimize your SLR viewfinder’s sharpness in conjunction with your individual eyesight. Eyepiece diopters are designed for specific camera models and are identified by a plus, a minus or a neutral numeric diopter value.
Standard eyepieces supplied with Nikon SLR cameras have no corrective value and are for dust protection only. Select eyepieces are supplied with a rubber coating designed to lessen scratching of a photographer’s eyeglasses.
Nikon SLR cameras (without built-in adjustable eyepiece correction) have a base diopter value of minus one. This is why you won’t find an accessory Nikon eyepiece diopter valued at minus one. Minus one is considered the optimum starting point for the majority of SLR users with normal vision. The combination of the camera’s viewfinder components and a clear (standard) eyepiece form a virtual image of a subject on the camera’s focusing screen that is the approximate equivalent of a viewing distance of one meter.
Each Nikon eyepiece diopter incorporates a numerical value, represented by a minus value (near-sighted) or a plus value (farsighted) number, enabling you to select the appropriate diopter for your vision and your camera model. The eyepiece’s diopter value is, when combined with the viewfinder’s minus one value, the end-result value. No combination of the camera’s base value of minus one and a given accessory diopter’s value is required to arrive at the final desired value. In other words, if you require a diopter of plus 3, simply add a plus 3 diopter to your camera.
Neutral correction eyepieces do not replace the supplied standard eyepiece. The use of a neutral correction eyepiece will change the diopter value of the camera from minus one to zero.
To determine which Nikon diopter value is best suited for you, visit your ophthalmologist, optometrist or dispensing optician. Ask them to determine your diopter from (your corrective prescription) when viewing an object at distance of approximately one meter. Base your selection on this diopter value.
Some Nikon SLR Cameras have built-in adjustable eyepiece correction. Please check your instruction manual to see if additional threaded Nikon eyepiece diopters can be combined with your camera’s built-in diopter control. For cameras with built-in diopter control, use additional Nikon eyepiece diopters only if your vision dictates that optimum viewfinder sharpness cannot be achieved with the built-in diopter adjustment control.
Select camera models will accept eyepieces from multiple eyepiece families.

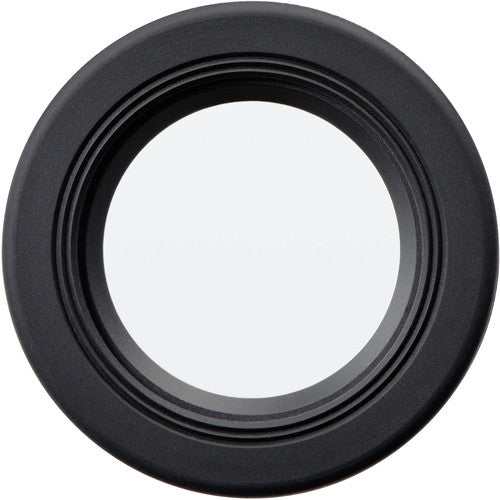

Mfr SKU: 27166 | Helix SKU: NK27166
The DK-17F is a fluorine coated finder eyepiece that is supplied with the camera. The protective fluorine coating makes it easy to clean the eyepiece.
D500 Sports & Wildlife Kit
$ 52.00 - Sold Out
Nikon SKU: 4793 | Helix SKU: NK4793
Attached to a camera, the DK-17M magnifies the finder image approx. 1.2x.
Diopter adjustment range is widened at both the (+) and (-) sides.
Mfr SKU: 25324 | Helix SKU: NK25324
Improves viewing comfort and prevents stray light from entering the viewfinder and diminishing contrast.
Eyepiece shield made from comfortable soft rubber.
Minimizes the amount of stray light that enters the viewfinder.

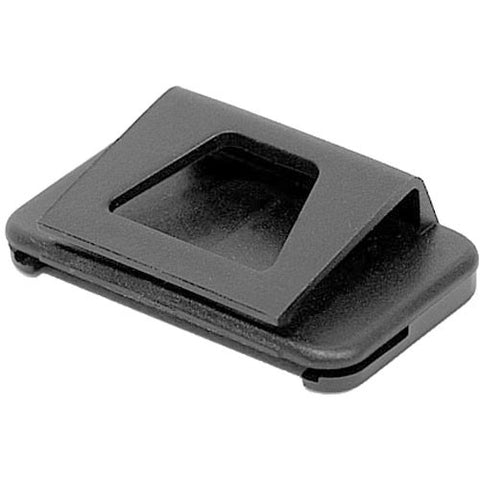

Mfr SKU: 2380 | Helix SKU: NK2380
When using the self timer or remote release it is recommended to remove the viewfinder eyepiece cup and attach the DK-5 eyepiece cap.
This will prevent light entering the viewfinder from affecting the exposure in auto exposure modes.
D780, D610, D3500, D7500, D7200, D3400, D5600, D3400, D3300, D5300, D5500, D7100, D3200, D750, FM10, D5200, D600, D7000, D90, D3000, D3100, D5100, D5000
|Package Weight||0.02 lb|
|Box Dimensions (LxWxH)||2 x 2 x 1"|
